15" TFT LCD (LED) Touchscreen, 1024x768, 4:3, 800:1, AccuTouch ZB, RS-232, USB, Black
Integrated touch
The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.
MSR ready
The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.
The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.

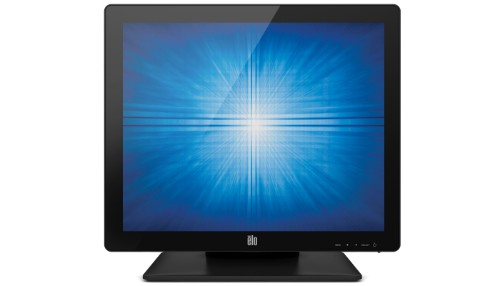

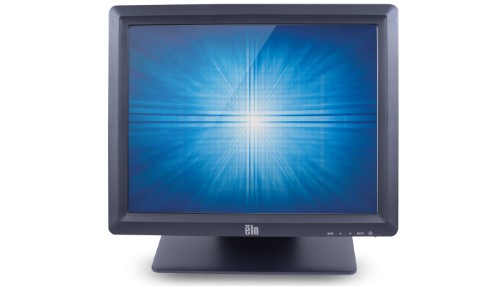

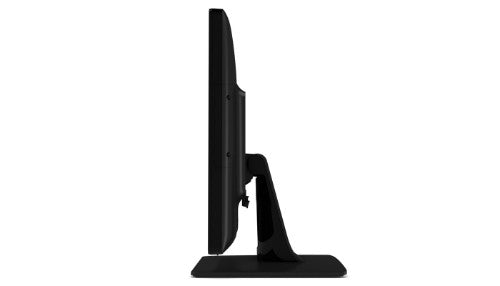

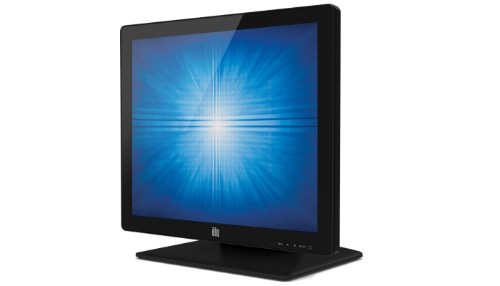

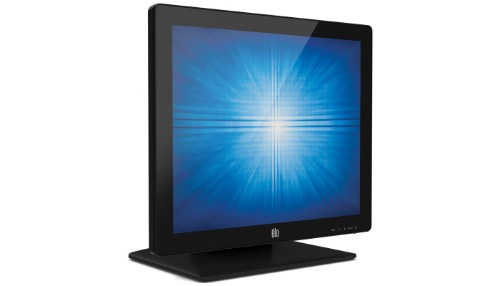

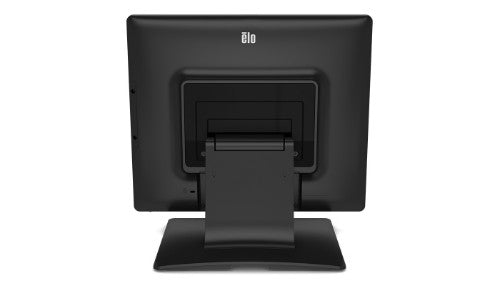

Elo Touch Solutions 1517L 38.1 cm (15") LED 240 cd/m² Black Touchscreen
£454.54
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Sleek and thin design with built-for-touch reliability
- Flexible and space-saving
- 60% Energy savings using LED technology
- Sealed touchscreen against dirt, dust and liquids
- Removable base and mounting options including VESA, wall and pole-mounting
- USB and RS232 serial connections
- Typical power consumption: 12W, internal and external power options
Description
The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.Integrated touch
The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.
MSR ready
The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.
The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Panel type | TFT |
| Display number of colours | 16.2 million colours |
| Touchscreen | Yes |
| Display technology | LED |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Display brightness | 240 cd/m² |
| Response time | 23 ms |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 150° |
| Vertical scan range | 56 - 75 Hz |
| Native aspect ratio | 4:3 |
| Horizontal scan range | 31.5 - 60 kHz |
| Touchscreen technology | Resistive |
| Design | |
| Placement supported | Horizontal |
| Product colour | Black |
| Panel mounting interface | 75 x 75 mm |
| Certification | UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE |
| VESA mounting | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Japanese |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| Power | |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 10.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width (with stand) | 358 mm |
| Height (with stand) | 319 mm |
| Depth (with stand) | 197 mm |
| Weight (with stand) | 4.3 kg |
| Packaging data | |
| Package width | 487 mm |
| Package depth | 231 mm |
| Package height | 485 mm |
| Package weight | 7.3 kg |
| Cables included | AC, USB, VGA |
| Packaging content | |
| Stand included | Yes |
| Cables included | AC, USB, VGA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Certification | UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE |
| Technical details | |
| VESA mounting | Yes |
| Power supply type | AC |
| Stand included | Yes |
| Panel type | TFT |
| Weight (with stand) | 4.3 kg |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Wall mountable | Yes |
| Other features | |
| Power supply type | AC |
| Stand included | Yes |
| Panel type | TFT |
| Width (with stand) | 358 mm |
| Viewable size, vertical | 30.4 cm |
| Viewable size, horizontal | 22.8 cm |
| LED indicators | Yes |
| Height (with stand) | 319 mm |
| Display technology | LED |
| Depth (with stand) | 197 mm |
| Built-in microphone | No |
| Built-in camera | No |
| Weight (with stand) | 4.3 kg |
