750VA, 525W, 1 x NEMA 5-15P In, 6 x NEMA 5-15R Out, RS-232, USB, Tower

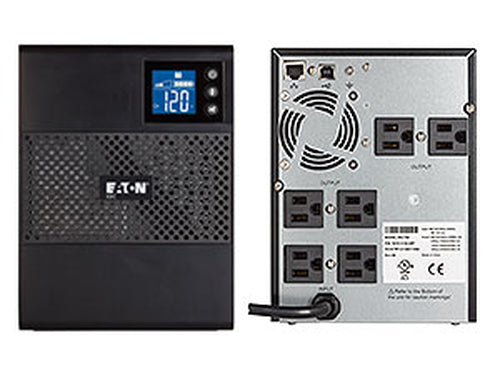

Eaton 5SC750 uninterruptible power supply (UPS) 0.75 kVA 525 W 6 AC outlet(s)
Sale price
£303.61
Regular price
£424.11
Taxes included.
Shipping calculated at checkout.
Details
Description
The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton’s Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.Specifications
| Power | |
|---|---|
| Output power | 525 W |
| Input operation voltage (min) | 96 V |
| Input operation voltage (max) | 144 V |
| Efficiency | 94% |
| Output power capacity | 0.75 kVA |
| Ports & interfaces | |
| Cable length | 1.8 m |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Power plug | NEMA 5-15P |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Performance | |
| Waveform | Sine |
| LED indicators | Yes |
| Noise level | 55 dB |
| Features | |
| Waveform | Sine |
| Output power | 525 W |
| Input operation voltage (min) | 96 V |
| Input operation voltage (max) | 144 V |
| Efficiency | 94% |
| Noise level | 55 dB |
| Output power capacity | 0.75 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 13 min |
| Typical backup time at full load | 5 min |
| Cold start | Yes |
| Design | |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | Black |
| Safety | CE/cULus/NOM |
| Certification | IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A |
| Cable length | 1.8 m |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A |
| Compliance certificates | RoHS |
| Safety | CE/cULus/NOM |
| Safety regulation & standards | |
| Safety | CE/cULus/NOM |
| Weight & dimensions | |
| Weight | 10.5 kg |
| Width | 150 mm |
| Height | 209 mm |
| Depth | 340 mm |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Nominal output voltage | 120 V |
| Nominal input voltage | 120 V |
