Unmanaged, Fast Ethernet, Duplex, 8x RJ-45, 1.6 Gbps, IEEE 802.3x, 1K MAC, Auto MDI/MDIX, RoHS, 412 g

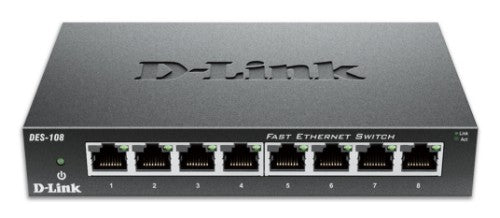

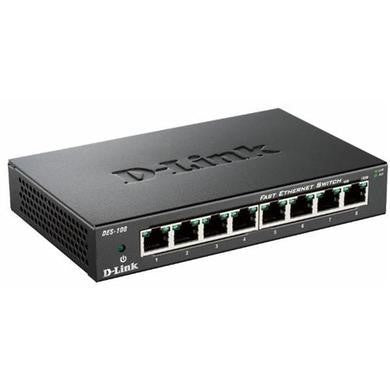

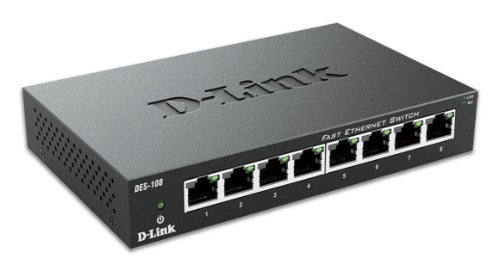

The DES-108 8-Port Fast Ethernet Unmanaged Desktop Switch is a 8-port 10/100 Mbps Fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-108 to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.
Auto-Sensing 10/100 Ports
The DES-108 uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
Auto MDI/MDIX Crossover
All of the ports on the DES-108 support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. In addition, the DES-108 features multiple front, easy-to-access Ethernet ports with two colour LED indicators per port to easily distinguish link status.
Flow Control for Secure Transmission
When a port reaches its receiving buffer capacity, the 802.3x flow control feature activates to minimize dropped packets. By minimizing the number of dropped packets, the switch provides a more reliable connection for all of your connected devices while surfing the web, playing games, or accessing media.
Think Green
The DES-108 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, in which the switch will proceed to power down the idle port, saving a substantial amount of power.
D-Link 8-Port Fast Ethernet Unmanaged Desktop Switch
Sale price
£10.99
Regular price
£14.99
Taxes included.
Shipping calculated at checkout.
Details
Description
D-Link’s DES-108 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 8 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes the DES-108 completely silent so it is ideal for offices, libraries or meeting rooms.The DES-108 8-Port Fast Ethernet Unmanaged Desktop Switch is a 8-port 10/100 Mbps Fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-108 to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.
Auto-Sensing 10/100 Ports
The DES-108 uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
Auto MDI/MDIX Crossover
All of the ports on the DES-108 support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. In addition, the DES-108 features multiple front, easy-to-access Ethernet ports with two colour LED indicators per port to easily distinguish link status.
Flow Control for Secure Transmission
When a port reaches its receiving buffer capacity, the 802.3x flow control feature activates to minimize dropped packets. By minimizing the number of dropped packets, the switch provides a more reliable connection for all of your connected devices while surfing the web, playing games, or accessing media.
Think Green
The DES-108 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, in which the switch will proceed to power down the idle port, saving a substantial amount of power.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Network | |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| Packet forwarding rate (100 Mbps) | 148.8 pps |
| Jumbo frames | 1536 |
| Packet buffer memory | 0.768 MB |
| MAC address table | 1000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 1.6 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
| Security | |
| MAC address filtering | Yes |
| Design | |
| Product colour | Black |
| Stackable | No |
| LED indicators | Link, Power |
| Housing material | Metal |
| Rack mounting | No |
| Performance | |
| Mean time between failures (MTBF) | 511.323 h |
| Packet buffer memory | 0.768 MB |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 2.8 W |
| Input voltage | 5 V |
| Input current | 1 A |
| Power source | DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Data transfer rate | 200 Mbit/s |
| Input voltage | 5 V |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 9.548 BTU/h |
| Weight & dimensions | |
| Width | 162 mm |
| Depth | 102 mm |
| Height | 28 mm |
| Weight | 412 g |
| Packaging data | |
| Package width | 208 mm |
| Package depth | 250 mm |
| Package height | 68 mm |
| Package weight | 610 g |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Mean time between failures (MTBF) | 511.323 h |
| Housing material | Metal |
| Rack mounting | No |
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case net weight | 6.1 kg |
| Shipping (inner) case length | 37 cm |
| Shipping (inner) case height | 44.3 cm |
| Products per shipping (inner) case | 10 pc(s) |
| Products per pallet (sea) | 480 pc(s) |
| Products per pallet (air) | 480 pc(s) |
| Pallet gross width | 122 cm |
| Pallet gross length | 102 cm |
| Pallet height (sea) | 2.07 m |
| Pallet height (air) | 2.07 m |
| Pallet gross weight (sea) | 357.5 kg |
| Pallet gross weight (air) | 357.5 kg |
| Master (outer) cases per pallet (sea) | 48 pc(s) |
| Master (outer) cases per pallet (air) | 48 pc(s) |
| Shipping (inner) case gross weight | 7 kg |
| Compliance certificates | C-TICK, CB, CE, Federal Communications Commission (FCC), ICES, RoHS, VCCI, cUL |
| Memory | |
| Packet buffer memory | 0.768 MB |
| Certificates | |
| Compliance certificates | C-TICK, CB, CE, Federal Communications Commission (FCC), ICES, RoHS, VCCI, cUL |
| Indication | |
| LED indicators | Link, Power |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
