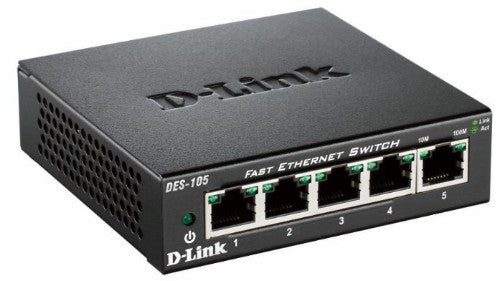

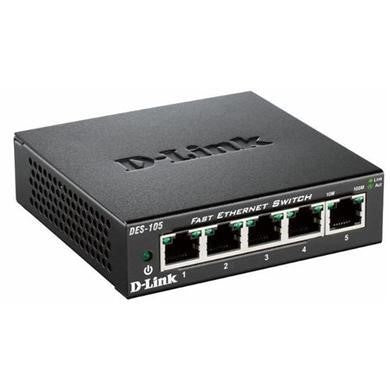

DES-105 - 5 Port Fast Ethernet Switch, Auto MDI/MDIX, QoS, Black
- 5 Fast Ethernet ports
- Non-blocking architecture: simultaneous full speed on all ports
- Fanless, silent operation to fit in any environment
- Quality of Service (QoS) queues for traffic prioritisation
- Solidly built with metal housing
- D-Link Green™ technology, saves energy and increases the product’s lifespan
D-Link’s DES-105 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 5 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes this switch completely silent, ideal for offices, libraries or meeting rooms.
Robust design
The DES-105 are designed with durability and performance in mind. The sturdy metal housing will protect the switch against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status, helping to troubleshoot connectivity problems. For a convenient placement, this switch comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.
QoS (Quality of Service)
Despite being an unmanaged, Plug and Play switch, the DES-105 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.
Power-saving technology
The DES-105 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implement the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. This helps businesses to save money by reducing their electricity bills with no compromise on performance.
D-Link 5-Port Fast Ethernet Unmanaged Desktop Switch
£13.62
Taxes included.
Shipping calculated at checkout.
Details
Description
- Plug and Play operation- 5 Fast Ethernet ports
- Non-blocking architecture: simultaneous full speed on all ports
- Fanless, silent operation to fit in any environment
- Quality of Service (QoS) queues for traffic prioritisation
- Solidly built with metal housing
- D-Link Green™ technology, saves energy and increases the product’s lifespan
D-Link’s DES-105 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 5 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes this switch completely silent, ideal for offices, libraries or meeting rooms.
Robust design
The DES-105 are designed with durability and performance in mind. The sturdy metal housing will protect the switch against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status, helping to troubleshoot connectivity problems. For a convenient placement, this switch comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.
QoS (Quality of Service)
Despite being an unmanaged, Plug and Play switch, the DES-105 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.
Power-saving technology
The DES-105 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implement the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. This helps businesses to save money by reducing their electricity bills with no compromise on performance.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Network | |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Packet buffer memory | 0.384 MB |
| MAC address table | 2000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Security | |
| MAC address filtering | Yes |
| Design | |
| Product colour | Black |
| LED indicators | Link, Power |
| Housing material | Metal |
| Rack mounting | No |
| Certification | RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB |
| Performance | |
| Mean time between failures (MTBF) | 495709 h |
| Packet buffer memory | 0.384 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (typical) | 1.9 W |
| Input voltage | 5 V |
| Input current | 1 A |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Data transfer rate | 200 Mbit/s |
| Dimensions (WxDxH) | 100 x 98 x 28 mm |
| Connectivity technology | Wired |
| Input voltage | 5 V |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Weight | 265 g |
| Packaging data | |
| Package width | 170 mm |
| Package depth | 220 mm |
| Package height | 62 mm |
| Package weight | 450 g |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 495709 h |
| Housing material | Metal |
| Rack mounting | No |
| Shipping (inner) case width | 23 cm |
| Shipping (inner) case net weight | 4.5 kg |
| Shipping (inner) case length | 33.5 cm |
| Shipping (inner) case height | 36.6 cm |
| Products per shipping (inner) case | 10 pc(s) |
| Products per pallet (sea) | 750 pc(s) |
| Products per pallet (air) | 750 pc(s) |
| Pallet gross width | 110 cm |
| Pallet gross length | 120 cm |
| Pallet height (sea) | 2.04 m |
| Pallet height (air) | 2.04 m |
| Pallet gross weight (sea) | 434 kg |
| Pallet gross weight (air) | 434 kg |
| Master (outer) cases per pallet (sea) | 75 pc(s) |
| Master (outer) cases per pallet (air) | 75 pc(s) |
| Shipping (inner) case gross weight | 5.5 kg |
| Memory | |
| Packet buffer memory | 0.384 MB |
| Certificates | |
| Certification | RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB |
| Indication | |
| LED indicators | Link, Power |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
