5x 100BASE-TX RJ-45, 1 Gbps, 2K MAC
Fast Internet Connection at Home.
The D-Link DES-1005P 5-Port Fast Ethernet PoE Unmanaged Desktop Switch allows you to easily connect a Power over Ethernet (PoE) device such as a wireless access point (AP), IP camera, or IP phone. The switch also gives you the opportunity to add additional Ethernet devices such as computers, printers, and Network Attached Storage (NAS) onto your network. This compact PoE switch operates quietly, making it ideal for use in virtually any room or office.
Power over Ethernet (PoE).
The first port of the DES-1005P supports the IEEE 802.3af PoE standard. The port supplies a total PoE budget of 15.4 watts, allowing users to attach an IEEE 802.3af-compliant device to the DES-1005P that requires no additional power. Use PoE for applications that are far from power outlets or when you want to minimise the clutter of extra cables.
Auto MDI/MDIX Crossover.
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.
Conserves Energy.
The DES-1005P 5-Port Fast Ethernet PoE Unmanaged Desktop Switch makes use of D-Link Green™ eco-friendly technology, providing energy savings, reduced power consumption, and a longer product life without sacrificing operational performance or functionality. This switch helps to conserve energy through methods such as Link Status and Cable Length Detection. The Link Status feature automatically powers down ports that have no link, allowing the switch to save substantial amounts of energy by cutting power for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjust power usage accordingly, helping you save energy without affecting networking performance. In addition, the fan-less design extends the switch’s life and also reduces noise.

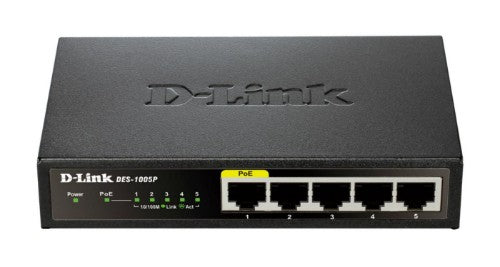

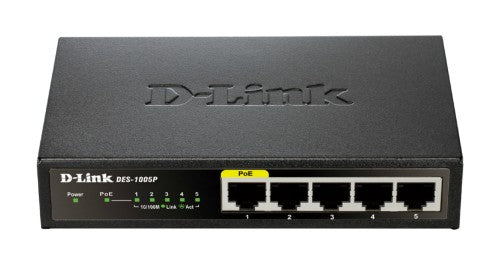

D-Link DES-1005P Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
£34.41
Taxes included.
Shipping calculated at checkout.
Details
Description
The DES-1005P offers an economical way for SOHO users to not only enjoy the benefit of having a five-port network switch, but having a five-port network switch with one of those ports PoE enabled. Users can then easily create a PoE home surveillance system even in locations where power sockets are limited. The addition of a PoE port to a five port switch allows SMB users an alternative to larger, more expensive switches, without having to sacrifice the need to power PoE devices.Fast Internet Connection at Home.
The D-Link DES-1005P 5-Port Fast Ethernet PoE Unmanaged Desktop Switch allows you to easily connect a Power over Ethernet (PoE) device such as a wireless access point (AP), IP camera, or IP phone. The switch also gives you the opportunity to add additional Ethernet devices such as computers, printers, and Network Attached Storage (NAS) onto your network. This compact PoE switch operates quietly, making it ideal for use in virtually any room or office.
Power over Ethernet (PoE).
The first port of the DES-1005P supports the IEEE 802.3af PoE standard. The port supplies a total PoE budget of 15.4 watts, allowing users to attach an IEEE 802.3af-compliant device to the DES-1005P that requires no additional power. Use PoE for applications that are far from power outlets or when you want to minimise the clutter of extra cables.
Auto MDI/MDIX Crossover.
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.
Conserves Energy.
The DES-1005P 5-Port Fast Ethernet PoE Unmanaged Desktop Switch makes use of D-Link Green™ eco-friendly technology, providing energy savings, reduced power consumption, and a longer product life without sacrificing operational performance or functionality. This switch helps to conserve energy through methods such as Link Status and Cable Length Detection. The Link Status feature automatically powers down ports that have no link, allowing the switch to save substantial amounts of energy by cutting power for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjust power usage accordingly, helping you save energy without affecting networking performance. In addition, the fan-less design extends the switch’s life and also reduces noise.
Specifications
| Performance | |
|---|---|
| Stackable | No |
| Mean time between failures (MTBF) | 324616 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power connector | DC-in jack |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Mean time between failures (MTBF) | 324616 h |
| Rack mounting | No |
| Shipping (inner) case width | 26.6 cm |
| Shipping (inner) case net weight | 9.5 kg |
| Shipping (inner) case length | 37 cm |
| Shipping (inner) case height | 44.3 cm |
| Products per shipping (inner) case | 10 pc(s) |
| Products per pallet (sea) | 480 pc(s) |
| Products per pallet (air) | 480 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross length | 110 cm |
| Pallet height (sea) | 196.7 cm |
| Pallet height (air) | 196.7 cm |
| Pallet gross weight (sea) | 514.6 kg |
| Pallet gross weight (air) | 514.6 kg |
| Master (outer) cases per pallet (sea) | 48 pc(s) |
| Master (outer) cases per pallet (air) | 48 pc(s) |
| Shipping (inner) case gross weight | 10.2 kg |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| MAC address table | 2000 entries |
| Certificates | |
| Certification | RoHS, FCC, CE, cUL, ICES-003 B |
| Design | |
| Product colour | Black |
| Stackable | No |
| LED indicators | Yes |
| Certification | RoHS, FCC, CE, cUL, ICES-003 B |
| Rack mounting | No |
| Indication | |
| Power LED | Yes |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet (PoE) ports quantity | 1 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 85 mm |
| Height | 28 mm |
| Packaging data | |
| Package width | 208 mm |
| Package depth | 250 mm |
| Package height | 68 mm |
| Package weight | 950 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Power LED | Yes |
