Smart-UPS RT 2200VA 230V - Marine

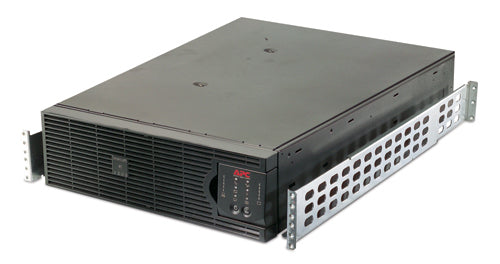

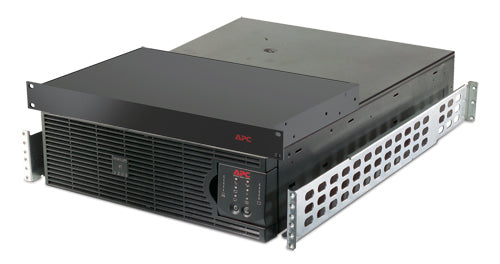

APC Smart-UPS RT 2200VA 230V - Marine
Sale price
£1,945.90
Regular price
£2,622.09
Taxes included.
Shipping calculated at checkout.
Details
Description
High availability, ruggedized power protection for shipboard and other transportation applications.Specifications
| Power | |
|---|---|
| Output power | 1540 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 280 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Efficiency | 92% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Crest factor | 3:1 |
| Output power capacity | 2.2 kVA |

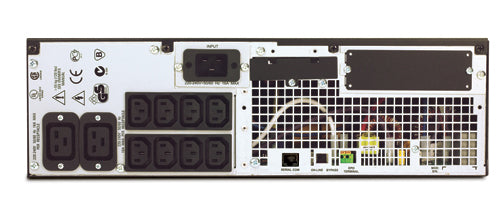

| Ports & interfaces | |
| Cable length | 2.5 m |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Number of output IEC jumpers | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output power | 1540 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 280 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Efficiency | 92% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 2.2 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 2.5 h |
| Design | |
| Rack capacity | 3U |
| Form factor | Rackmount |
| Product colour | Black |
| Certification | CE, DNV, EN 50091-1, EN 50091-2, EN 55022 Cl. A, EN 60950, EN 61000-3-2. |
| Cable length | 2.5 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Compliance certificates | RoHS |
| Packaging data | |
| Package dimensions (WxDxH) | 603 x 980 x 347 mm |
| Package weight | 63.6 kg |
| Weight & dimensions | |
| Weight | 54.5 kg |
| Width | 130 mm |
| Package weight | 63.6 kg |
| Height | 432 mm |
| Depth | 660 mm |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Certification | CE, DNV, EN 50091-1, EN 50091-2, EN 55022 Cl. A, EN 60950, EN 61000-3-2. |
| Other features | |
| Dimensions (WxDxH) | 130 x 660 x 432 mm |
| Package dimensions (WxDxH) | 603 x 980 x 347 mm |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
