Ellipse ECO 500 IEC

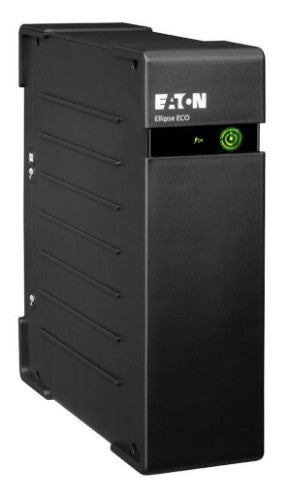

Eaton Ellipse ECO 500 IEC uninterruptible power supply (UPS) Standby (Offline) 0.5 kVA 300 W 4 AC outlet(s)
Sale price
£87.47
Regular price
£121.81
Taxes included.
Shipping calculated at checkout.
Details
Description
The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.Specifications
| Power | |
|---|---|
| Output power | 300 W |
| Input operation voltage (min) | 161 V |
| Input operation voltage (max) | 284 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Emergency Power Off (EPO) | No |
| Output power capacity | 0.5 kVA |
| Performance | |
| Audible alarm modes | Battery replacement |
| UPS topology | Standby (Offline) |
| LED indicators | Battery replacement |
| Surge protection | Yes |
| Surge protection features | Fax, Modem, Network, Telephone |
| Audible alarm(s) | Yes |
| Features | |
| Audible alarm modes | Battery replacement |
| UPS topology | Standby (Offline) |
| Output power | 300 W |
| Input operation voltage (min) | 161 V |
| Input operation voltage (max) | 284 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge protection | Yes |
| Surge protection features | Fax, Modem, Network, Telephone |
| Emergency Power Off (EPO) | No |
| Audible alarm(s) | Yes |
| Output power capacity | 0.5 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 9 min |
| Hot-swap battery | No |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 2U |
| Form factor | Tower |
| LED indicators | Battery replacement |
| Product colour | Black |
| Safety | IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1 |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Weight & dimensions | |
| Weight | 2.9 kg |
| Width | 81 mm |
| Height | 263 mm |
| Depth | 235 mm |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Safety | IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1 |
| Other features | |
| Input connection type | IEC |
| Overload protection | Yes |
| Nominal output voltage | 220-240 V |
| Nominal input voltage | 230 V |
