Symmetra PX 64kW Scalable to 96kW 400V, Modular Power Distribution
Provide notification of changing flywheel conditions
InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central.
Modular design
Increases adaptability with an open architecture configurable to any IT environment.
Modular design
Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system.
LCD display
Alpha-Numeric Display which displays system parameters and alarms.
SmartSlot
Customize UPS capabilities with management cards.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Configurable for N+1 internal redundancy
Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Audible alarms
Provides notification of changing utility power and UPS conditions.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

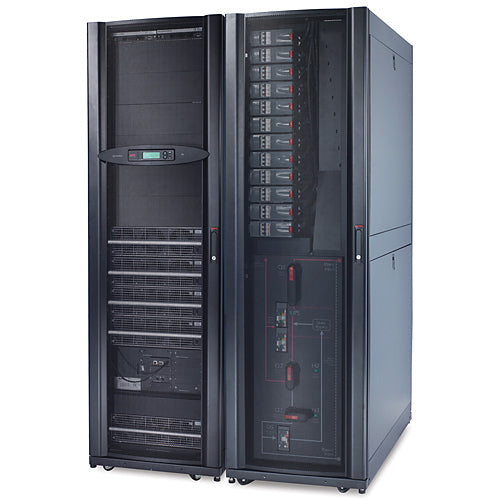

APC SY64K96H-PD uninterruptible power supply (UPS) 64 kVA 64000 W
£44,735.87
Taxes included.
Shipping calculated at checkout.
Details
Description
Audible alarmsProvide notification of changing flywheel conditions
InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central.
Modular design
Increases adaptability with an open architecture configurable to any IT environment.
Modular design
Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system.
LCD display
Alpha-Numeric Display which displays system parameters and alarms.
SmartSlot
Customize UPS capabilities with management cards.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Configurable for N+1 internal redundancy
Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Audible alarms
Provides notification of changing utility power and UPS conditions.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
| Power | |
|---|---|
| Output power | 64000 W |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 0.02% |
| Input current Total Harmonic Distortion (THD) | 0.05% |
| Output power capacity | 64 kVA |
| Battery | |
| Battery type | VRLA |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3.50 h |
| Performance | |
| Noise level | 63 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output power | 64000 W |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 0.02% |
| Noise level | 63 dB |
| Input current Total Harmonic Distortion (THD) | 0.05% |
| Audible alarm(s) | Yes |
| Output power capacity | 64 kVA |
| Design | |
| Product colour | Black |
| Certification | EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC 15 A,VFI-SS-111 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Weight | 1454 kg |
| Width | 1200 mm |
| Height | 1991 mm |
| Depth | 1070 mm |
| Certificates | |
| Certification | EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC 15 A,VFI-SS-111 |
| Other features | |
| Interface | SmartSlot |
| Battery type | VRLA |
| Output connections | 1x 3PH + N + G |
| Input connection type | 3PH + N + G |
| Nominal input voltage | 400 V |
