9PX with Network Card and Rack Kit, 5000VA
- Online double conversion topology
- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)
- Next-generation graphical LCD display (7 languages)
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Parallel operation using HotSync technology (available in Q2 2013)
- Maintenance ByPass available as standard (on HotSwap/BP version)
- Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)

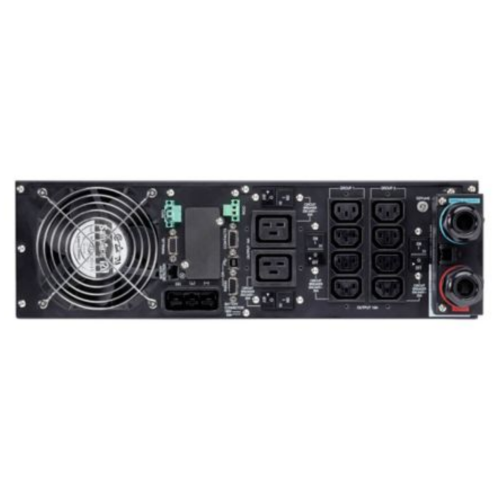

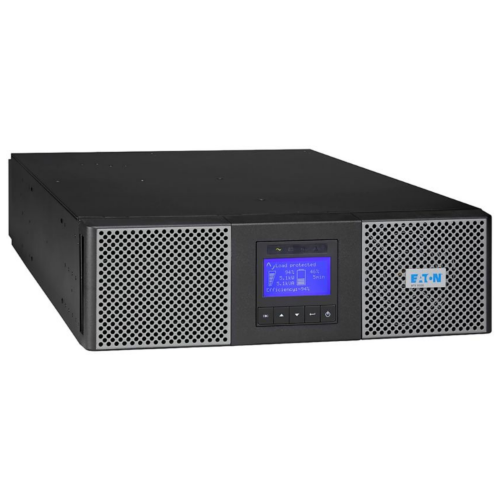

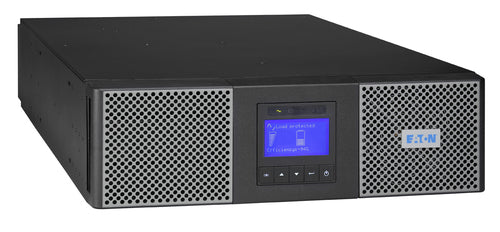

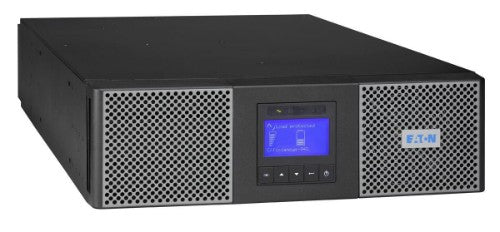

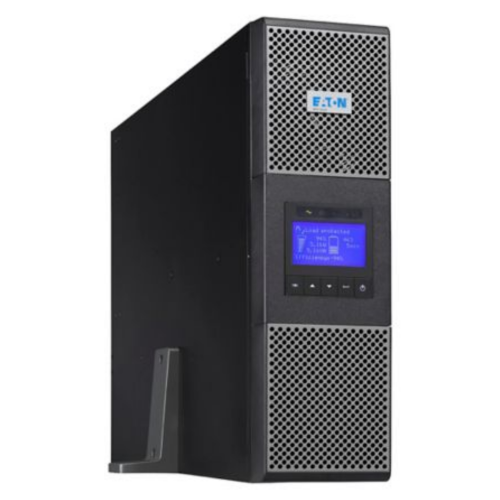

Eaton 9PX5KIRTN uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 4500 W 11 AC outlet(s)
Sale price
£2,365.57
Regular price
£4,622.38
Taxes included.
Shipping calculated at checkout.
Details
Description
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.- Online double conversion topology
- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)
- Next-generation graphical LCD display (7 languages)
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Parallel operation using HotSync technology (available in Q2 2013)
- Maintenance ByPass available as standard (on HotSwap/BP version)
- Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Specifications
| Power | |
|---|---|
| Output power | 4500 W |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 94% |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Crest factor | 3:1 |
| Output power capacity | 5 kVA |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Number of input phases | 1 |
| LED indicators | Yes |
| Noise level | 45 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Number of input phases | 1 |
| Output power | 4500 W |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 94% |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 45 dB |
| Input current Total Harmonic Distortion (THD) | 5% |
| Crest factor | 3:1 |
| Output power capacity | 5 kVA |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| AC outlets quantity | 11 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler, Terminal |
| Power plug | Terminal |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 13 min |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 3U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Safety | IEC/EN 62040-1, UL 1778 |
| Certification | IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report (TUV), UL |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 85078000 |
| Weight & dimensions | |
| Weight | 48 kg |
| Width | 440 mm |
| Height | 130 mm |
| Depth | 685 mm |
| Packaging data | |
| Rack mount kit | Yes |
| Bundled software | Intelligent Power Software suite |
| Management card included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Safety | IEC/EN 62040-1, UL 1778 |
| Certification | IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report (TUV), UL |
| Other features | |
| Interface | USB, RS232 |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Packaging content | |
| Rack mount kit | Yes |
| Bundled software | Intelligent Power Software suite |
