Intel® Xeon® Processor X5667
(12M Cache, 3.06 GHz, 6.40 GT/s Intel® QPI)
Features and benefits of the Intel® Xeon® processor 5600 series
Intelligent performance
Boost performance by up to 15 times over single-core servers with processors that intelligently adapt to your workload.
Intel® Turbo Boost Technology
Dynamically and automatically maximizes server application performance by increasing core frequencies, enabling faster speeds for specific threads, and mega-tasking workloads.
Intel® QuickPath Technology
Scalable shared memory architecture with high-speed, point-to-point processor interconnects, plus larger caches and larger memory for two-processor servers.
Large memory capacity
Up to 18 DIMM slots with up to 144 GB of main memory and up to 12 DIMM slots with up to 192 GB of memory support higher performance for your data intensive applications.
8 MB shared L3 cache with enhanced smart cache
Inclusive shared L3 cache increases application performance by reducing traffic to the processor cores.
Intel® I/O Acceleration Technology (Intel® I/OAT), with Intel® QuickData Technology
Moves data more efficiently through Intel® Xeon® processor-based workstations and server platforms for fast, scalable, and reliable network performance.
AES new instructions
Delivers robust encryption without needing additional appliances or increased performance overhead, improving CPU performance for encryption.
Automated energy efficiency
Get 45 percent more performance? than previous generations without increasing power consumption with servers based on next-generation 32nm process technology.
Integrated power gates
Allow idling cores to be reduced to near-zero power, independent of other cores, reducing server idle power consumption.
Automated low-power states
Automatically put processor, memory, and I/O controller into the lowest available power states that will meet the current workload while minimizing performance impact.
Flexible virtualization
Combine servers from multiple generations into the same virtualized server pool to extend failover, load balancing, and disaster recovery capability.
Intel® Virtualization Technology? (Intel® VT)
- Enables more operating systems and software to run in today’s virtual environments;
- Developed with virtualization software providers to enable greater functionality and compatibility compared to non-hardware-assisted virtual environments;
- Get the performance and headroom to improve the average virtualization performance over previous generations of two-processor servers.
Intel® Trusted Execution Technology? Provides enhanced virtualization security through hardware-based resistance to malicious software attacks at launch.

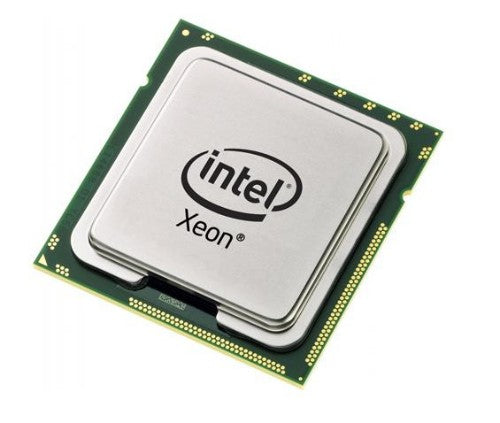

Intel Xeon X5667 processor 3.06 GHz 12 MB Smart Cache Tray
£1,195.88
Taxes included.
Shipping calculated at checkout.
Details
(12M Cache, 3.06 GHz, 6.40 GT/s Intel® QPI)
Description
Designed for industry-leading performance and maximum energy efficiency, these versatile 1-way and 2-way 64-bit multi-core servers and workstations are ideally suited to a wide range of infrastructure, cloud, high-density, and high performance computing (HPC) applications.Features and benefits of the Intel® Xeon® processor 5600 series
Intelligent performance
Boost performance by up to 15 times over single-core servers with processors that intelligently adapt to your workload.
Intel® Turbo Boost Technology
Dynamically and automatically maximizes server application performance by increasing core frequencies, enabling faster speeds for specific threads, and mega-tasking workloads.
Intel® QuickPath Technology
Scalable shared memory architecture with high-speed, point-to-point processor interconnects, plus larger caches and larger memory for two-processor servers.
Large memory capacity
Up to 18 DIMM slots with up to 144 GB of main memory and up to 12 DIMM slots with up to 192 GB of memory support higher performance for your data intensive applications.
8 MB shared L3 cache with enhanced smart cache
Inclusive shared L3 cache increases application performance by reducing traffic to the processor cores.
Intel® I/O Acceleration Technology (Intel® I/OAT), with Intel® QuickData Technology
Moves data more efficiently through Intel® Xeon® processor-based workstations and server platforms for fast, scalable, and reliable network performance.
AES new instructions
Delivers robust encryption without needing additional appliances or increased performance overhead, improving CPU performance for encryption.
Automated energy efficiency
Get 45 percent more performance? than previous generations without increasing power consumption with servers based on next-generation 32nm process technology.
Integrated power gates
Allow idling cores to be reduced to near-zero power, independent of other cores, reducing server idle power consumption.
Automated low-power states
Automatically put processor, memory, and I/O controller into the lowest available power states that will meet the current workload while minimizing performance impact.
Flexible virtualization
Combine servers from multiple generations into the same virtualized server pool to extend failover, load balancing, and disaster recovery capability.
Intel® Virtualization Technology? (Intel® VT)
- Enables more operating systems and software to run in today’s virtual environments;
- Developed with virtualization software providers to enable greater functionality and compatibility compared to non-hardware-assisted virtual environments;
- Get the performance and headroom to improve the average virtualization performance over previous generations of two-processor servers.
Intel® Trusted Execution Technology? Provides enhanced virtualization security through hardware-based resistance to malicious software attacks at launch.
Specifications
| Processor | |
|---|---|
| Processor base frequency | 3.06 GHz |
| Processor manufacturer | Intel |
| Cooler included | No |
| Processor codename | Westmere EP |
| Memory bandwidth supported by processor (max) | 32 GB/s |
| Thermal Design Power (TDP) | 95 W |
| Processor cache | 12 MB |
| Processor ARK ID | 47919 |
| Processor model | X5667 |
| Processor threads | 8 |
| System bus rate | 6.4 GT/s |
| Processor operating modes | 64-bit |
| VID Voltage Range | 0.75 - 1.35 V |
| Processor boost frequency | 3.46 GHz |
| Stepping | B1 |
| Number of QPI links | 2 |
| L3 cache speed | 3060 GHz |
| CPU multiplier (bus/core ratio) | 23 |
| Bus type | QPI |
| Component for | Server/workstation |
| Processor lithography | 32 nm |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor cores | 4 |
| Processor socket | LGA 1366 (Socket B) |
| Processor code | SLBVA |
| Processor series | Intel Xeon 5600 Series |
| Processor cache type | Smart Cache |
| Package type | Tray |
| Memory | |
| Maximum internal memory supported by processor | 288 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory bandwidth supported by processor (max) | 32 GB/s |
| Supported memory types | DDR3-SDRAM |
| Memory channels | Triple-channel |
| ECC | Yes |
| Graphics | |
| On-board graphics card | No |
| Power | |
| Thermal Design Power (TDP) | 95 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Technical details | |
| Cache memory | 12 MB |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Supported instruction sets | SSE4.2 |
| Physical Address Extension (PAE) | Yes |
| L3 cache speed | 3060 GHz |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Processor code | SLBVA |
| Product type | Processor |
| Processor cache | 12288 KB |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 95 W |
| Supported memory types | DDR3-SDRAM |
| Status | Discontinued |
| Product name | Intel Xeon X5667 (12M Cache, 3.06 GHz, 6.40 GT/s Intel QPI) |
| Processor series | Intel Xeon 5600 Series |
| Processor core voltage | 0.750-1.350 V |
| Physical Address Extension (PAE) | 40 bit |
| Market segment | Server |
| Launch date | Q1'10 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor cache type | Smart Cache |
| Bus type units | GT/s |
| Bus bandwidth | 6.4 |
| Born on date | Q1'10 |
| Maximum memory | 288 GB |
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Processor 5000 Sequence |
| Bus speed | 6.4 GT/s |
| Features | |
| Thermal Design Power (TDP) | 95 W |
| Processor package size | 42.5mm x 45mm |
| Processor ARK ID | 47919 |
| Thermal Monitoring Technologies | No |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Supported instruction sets | SSE4.2 |
| Physical Address Extension (PAE) | Yes |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Processor code | SLBVA |
| Physical Address Extension (PAE) | 40 bit |
| Market segment | Server |
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Operational conditions | |
| Tcase | 82.9 °C |
| Packaging data | |
| Package type | Tray |
| Logistics data | |
| Harmonized System (HS) code | 8542310001 |
| Weight & dimensions | |
| Processor package size | 42.5mm x 45mm |
| Other features | |
| Cache memory | 12 MB |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Maximum internal memory | 294912 MB |
| Maximum internal memory | 288 GB |
| CPU configuration (max) | 2 |
| Compatibility | Intel S5520UR, S5520SC, S5500BC, S5500WB, S5500HV, S5500WB12V, MFS5520VIR, S5520URT, SR2612UR, SR1670HV, SR1680MV, SC5650SCWS, SR1630BCR, SC5650BCDPR, SC5650HCBRPR, SR2625URLXR, SR2625URLXT, SR2625URBRPR, SR1600URR, SR1600URHSR, SR1625URR, SR1625URSASR, SR2600URBRPR, SR2600URLXR, SR2612URR, SR1695WBAC, SR1690WBR |
| Processor code | SLBVA |
