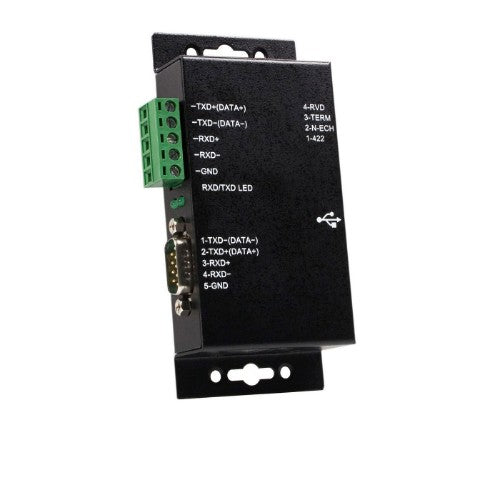

1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation
The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation
MPN:
ICUSB422IS
In stock: 10
£116.47
VAT included.
Shipping calculated at checkout.
Details
Description
Add an R422/485 serial port to your laptop or desktop computer through USBThe ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Connector 2 | RS-422/485 |
| Connector 1 | USB B |
| Cables included | USB |
| Cable length | 1.8 m |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Technical details | |
| Input voltage | 5 V |
| Product colour | Black |
| Cable length | 1.8 m |
| Design | |
| Product colour | Black |
| Cable length | 1.8 m |
| Performance | |
| Input voltage | 5 V |
| Compatible operating systems | Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x+ |
| Product colour | Black |
| Data transfer rate | 0.00088 Gbit/s |
| System requirements | |
| Compatible operating systems | Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x+ |
| Power | |
| Input voltage | 5 V |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 85 °C |
| Relative humidity | 5 - 95% |
| Operating temperature (T-T) | 0 - 55 °C |
| Weight & dimensions | |
| Width | 64 mm |
| Weight | 180 g |
| Height | 23 mm |
| Depth | 118 mm |
| Packaging data | |
| Package width | 45 mm |
| Package height | 160 mm |
| Package depth | 230 mm |
| Package weight | 390 g |
| Packaging content | |
| Cables included | USB |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 502 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 511 mm |
