APC BGM2200-GR, Line-Interactive, 2.2 kVA, 1320 W, Sine, 168 V, 302 V

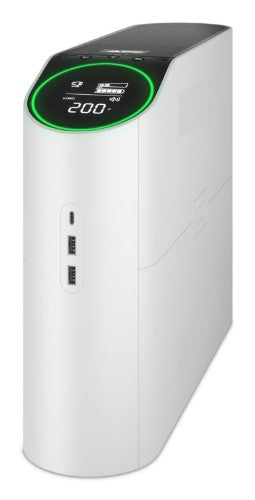

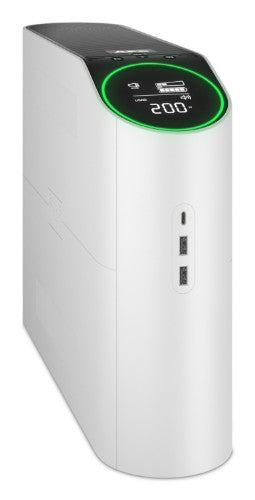

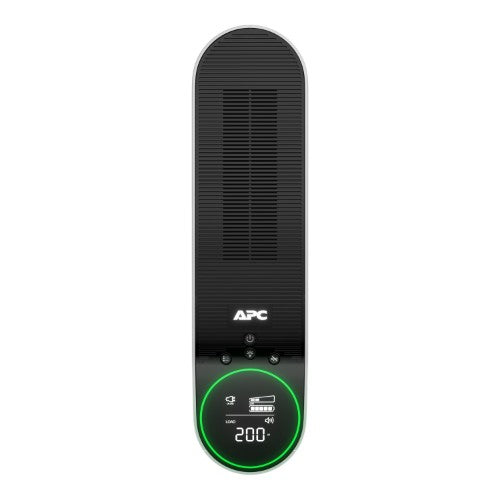

APC BGM2200-GR uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1320 W 6 AC outlet(s)
Sale price
£313.41
Regular price
£433.60
Taxes included.
Shipping calculated at checkout.
Details
Description
APC BGM2200-GR. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1320 W. AC outlet types: C13 coupler, AC outlets quantity: 6 AC outlet(s), Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 24 V, Battery life (max): 5 year(s). Form factor: Tower, Product colour: White, Rack capacity: 0U. Certification: IEC 62040-1-1 IEC 62040-2Specifications
| Power | |
|---|---|
| Output power | 1320 W |
| Input operation voltage (min) | 168 V |
| Input operation voltage (max) | 302 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 1080 J |
| Maximum current | 12 A |
| Output power capacity | 2.2 kVA |
| Ports & interfaces | |
| Cable length | 1.52 m |
| USB port | Yes |
| Serial interface type | RJ-45 |
| Cabling technology | 10/100/1000Base-T(X) |

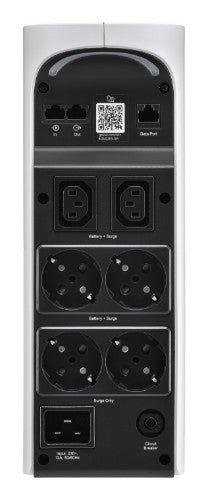

| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| Performance | |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Response time | 8 ms |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Surge protection features | Network |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 60 Hz |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Response time | 8 ms |
| Output power | 1320 W |
| Input operation voltage (min) | 168 V |
| Input operation voltage (max) | 302 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 1080 J |
| Maximum current | 12 A |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Surge protection features | Network |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 2.2 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Number of batteries supported | 1 |
| Battery voltage | 24 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 16 h |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| Rack capacity | 0U |
| Form factor | Tower |
| Product colour | White |
| Certification | IEC 62040-1-1 IEC 62040-2 |
| Cable length | 1.52 m |

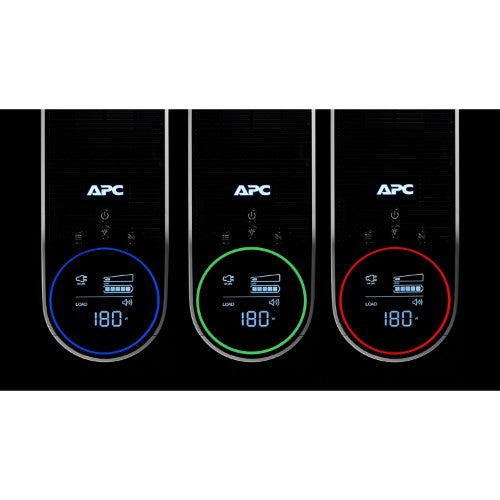

| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 3048 m |
| Technical details | |
| Output frequency | 60 Hz |
| Sustainability certificates | Green Premium |
| Certificates | |
| Certification | IEC 62040-1-1 IEC 62040-2 |
| Packaging content | |
| Cables included | USB cable |
| Manual | Yes |
| Sustainability | |
| Sustainability certificates | Green Premium |
| Weight & dimensions | |
| Package width | 355 mm |
| Package depth | 480 mm |
| Package height | 155 mm |
| Weight | 12.3 kg |
| Width | 104.1 mm |
| Package weight | 14.5 kg |
| Height | 292.1 mm |
| Depth | 408.9 mm |
| Packaging data | |
| Cables included | USB cable |
| Manual | Yes |
| Package width | 355 mm |
| Package depth | 480 mm |
| Package height | 155 mm |
| Package weight | 14.5 kg |
