22", 1920x1080, Touch, HDMI

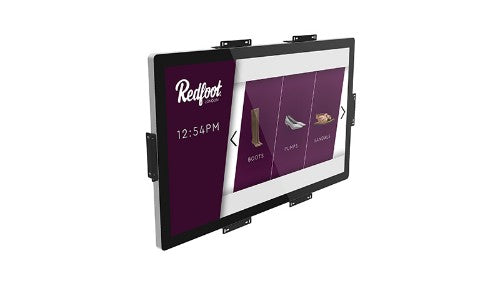

These open frame touch screen monitors are ideal for system integrators. With an underside mounting bracket included at no extra cost, this flexible solution can be mounted into any kiosk, table or cabinet in any direction or orientation. The bracket also features micro-adjustment in all three directions to enable flush-fit surface integration. Alternatively, these monitors can be wall or stand mounted thanks to their complete enclosure.
Optional Integrated Windows PC

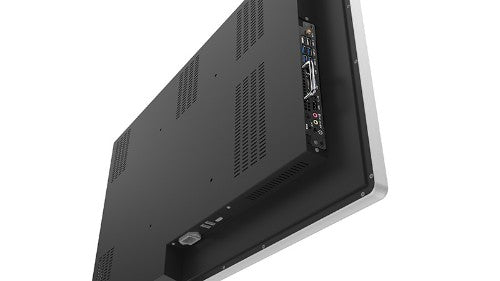

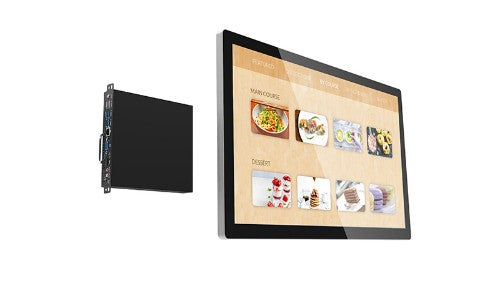

Easily transform this solution from an interactive touch monitor into a fully integrated all-in-one Windows touch screen simply by inserting an OPS PC into the built-in slot, with no cables required. To prevent theft or damage, this can be secured with a hex security screw.
10-Point PCAP Touch
Having up to 10 touch points allows users to perform a variety of touch gestures, including manipulating images and zooming in/out - much like you would with a domestic tablet or smart phone. It also allows multiple users to interact with the screen at the same time.
Surface Plasma Treatment
A special oleophobic coating makes the glass front more resistant to the oily residue left by fingerprints and improves the smoothness of touch gestures. Unlike other touch screens on the market, this glass is not etched, which vastly enhances the optical clarity.
24/7 Commercial Use
These monitors are designed for continuous use in public spaces, able to be used 24/7 for over 70,000 hours. Built using true commercial grade components and having undergone rigorous quality control testing, they offer a reliable and cost-effective solution.
500cd/m² IPS Panel
With a brightness of 500cd/m², these monitors are ideal for brightly-lit public spaces. Plus, commercial grade IPS technology ensures accurate image quality and colour depth with no fall-off in colour accuracy, as well as achieving ultimate lifelike colour temperature in both landscape and portrait orientation.
Giant Tablet Styling
A stylish edge-to-edge glass face, rounded corners, aluminium surround with unique concave indent profile, and thin black border deliver a captivating tablet-like aesthetic. The protective tempered glass face and mild steel enclosure also increase the durability of the display, protecting the LCD panel and other internal components from potential damage in public spaces.
Budget Friendly Touch Monitor
For projects where interactivity is required but costs need to be kept to a minimum these displays are perfect. If you have your own PC or media player and need to add a stylish touch screen monitor, look no further. Simply connect your media source via HDMI and USB and away you go.
Integrated Speakers
For applications that require an audio element, these monitors feature two integrated slimline speakers.

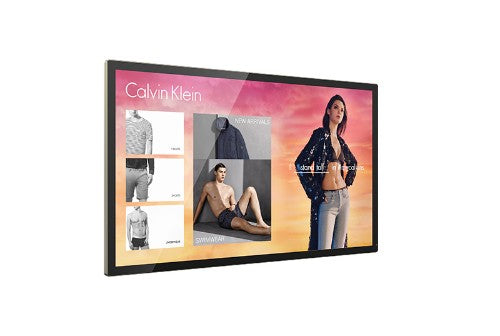

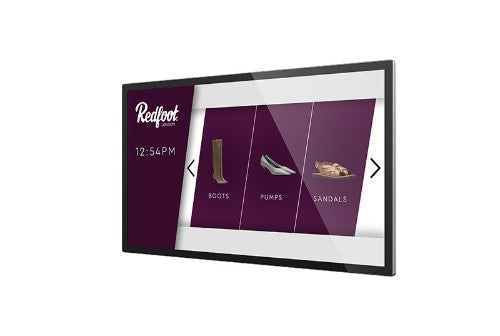

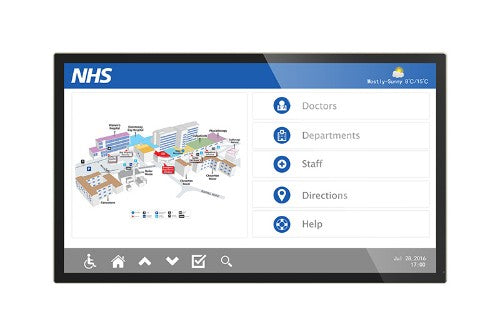

Allsee Technologies WP22B Signage Display Digital signage flat panel 55.9 cm (22") 500 cd/m² Full HD Black Touchscreen
Sale price
£436.80
Regular price
£526.00
Taxes included.
Shipping calculated at checkout.
Details
Description
Open Frame OptionThese open frame touch screen monitors are ideal for system integrators. With an underside mounting bracket included at no extra cost, this flexible solution can be mounted into any kiosk, table or cabinet in any direction or orientation. The bracket also features micro-adjustment in all three directions to enable flush-fit surface integration. Alternatively, these monitors can be wall or stand mounted thanks to their complete enclosure.
Optional Integrated Windows PC
Easily transform this solution from an interactive touch monitor into a fully integrated all-in-one Windows touch screen simply by inserting an OPS PC into the built-in slot, with no cables required. To prevent theft or damage, this can be secured with a hex security screw.
10-Point PCAP Touch
Having up to 10 touch points allows users to perform a variety of touch gestures, including manipulating images and zooming in/out - much like you would with a domestic tablet or smart phone. It also allows multiple users to interact with the screen at the same time.
Surface Plasma Treatment
A special oleophobic coating makes the glass front more resistant to the oily residue left by fingerprints and improves the smoothness of touch gestures. Unlike other touch screens on the market, this glass is not etched, which vastly enhances the optical clarity.
24/7 Commercial Use
These monitors are designed for continuous use in public spaces, able to be used 24/7 for over 70,000 hours. Built using true commercial grade components and having undergone rigorous quality control testing, they offer a reliable and cost-effective solution.
500cd/m² IPS Panel
With a brightness of 500cd/m², these monitors are ideal for brightly-lit public spaces. Plus, commercial grade IPS technology ensures accurate image quality and colour depth with no fall-off in colour accuracy, as well as achieving ultimate lifelike colour temperature in both landscape and portrait orientation.
Giant Tablet Styling
A stylish edge-to-edge glass face, rounded corners, aluminium surround with unique concave indent profile, and thin black border deliver a captivating tablet-like aesthetic. The protective tempered glass face and mild steel enclosure also increase the durability of the display, protecting the LCD panel and other internal components from potential damage in public spaces.
Budget Friendly Touch Monitor
For projects where interactivity is required but costs need to be kept to a minimum these displays are perfect. If you have your own PC or media player and need to add a stylish touch screen monitor, look no further. Simply connect your media source via HDMI and USB and away you go.
Integrated Speakers
For applications that require an audio element, these monitors feature two integrated slimline speakers.
Specifications
| Display | |
|---|---|
| Display number of colours | 16.7 million colours |
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Active display area (W x H) | 476.4 x 267.8 mm |
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1080 x 1920 pixels |
| Display brightness | 500 cd/m² |
| HD type | Full HD |
| Contrast ratio (typical) | 1000:1 |
| Native aspect ratio | 16:9 |
| Touchscreen technology | Projected capacitive system |
| Ports & interfaces | |
| USB port | Yes |
| HDMI ports quantity | 1 |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| Panel mounting interface | 100 x 100,150 x 100 mm |
| VESA mounting | Yes |
| Performance | |
| Purpose | Commercial |
| Power | |
| Power consumption (typical) | 40 W |
| AC input voltage | 220 V |
| Weight & dimensions | |
| Width | 526.2 mm |
| Depth | 67.3 mm |
| Height | 322.8 mm |
| Weight | 7.9 kg |
| Packaging data | |
| Package width | 597 mm |
| Package depth | 115 mm |
| Package height | 375 mm |
| Package weight | 10.1 kg |
| Remote control included | Yes |
| Cables included | Power, USB |
| Packaging content | |
| Remote control included | Yes |
| Cables included | Power, USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| VESA mounting | Yes |
| Number of simultaneous touchpoints | 10 |
| Other features | |
| Number of simultaneous touchpoints | 10 |
