USB-C to Dual USB-C with Video or Power Delivery
j5create USB-C to Dual USB-C with Video or Power Delivery
MPN:
JCA164-N
Out of stock
£28.48 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- Supports USB-C® video resolution up to 4K @ 240 Hz for VR/AR glasses and USB-C® monitor
- Designed specifically for AR glasses or high-resolution monitor, features a USB-C® port supporting 4K240Hz video output and 480 Mbps data transfer to offer an optimal immersive visual experience

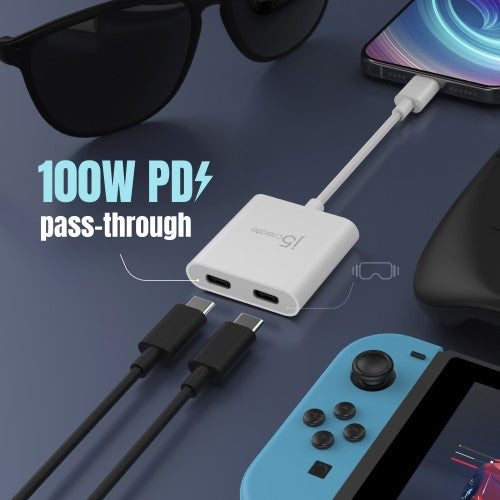

- Charge while playing! Equipped with a USB-C® charging input supporting up to PD 100W
- Suitable for iPhone® 15, Android™ phone or handheld game console like Nintendo Switch® and Steam Deck™
- Plug-and-play, no driver installation is required
Description

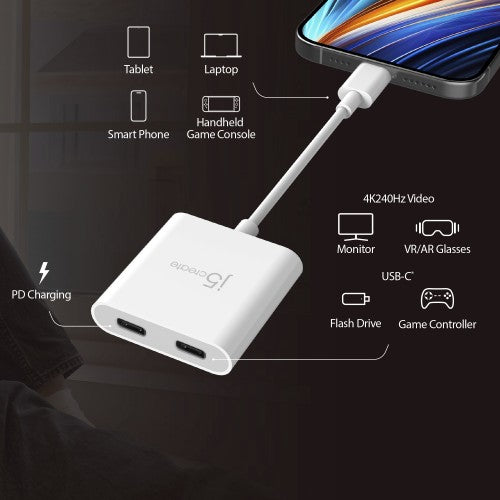

The JCA164 adapter could separate video/data/power function form your laptop, tablet, or smartphone. The adapter’s small size makes it easy to transport and place on a desk while saving space. This adapter allows you to connect a display such as a VR/AR glasses or portable USB-C® monitor to your device and supports resolutions up to 4K 240 Hz and it also support a 480 Mbps data transport. Another USB-C® Power Delivery port that can be used to charge your host when a USB-C® power adapter is connected. The 4K240 Hz USB-C® port supports Extended, and Mirrored display modes. This USB-C® port also support 480 Mbps data transport that allows you to connect USB™ peripherals such as a USB™ flash drive, keyboard, or mouse. Another USB-C® port supports upstream charging and Power Delivery 3.0 100W to keep your connected mobile device powered up while in use.Specifications
| Features | |
|---|---|
| Country of origin | Taiwan |
| Product colour | White |
| Cable length | 0.1 m |
| Connector 1 | USB Type-C |
| Connector 2 | USB Type-C |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Jacket material | Acrylonitrile butadiene styrene (ABS), Plastic |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
| Supported video modes | 1080p, 1440p, 2160p |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Other operating systems supported | ChromeOS |
| Maximum refresh rate | 240 Hz |
| Power source | USB |
| Voltage rating | 20 V |
| Cable type | Round cable |
| Refresh rate at maximum resolution | 30 Hz |
| Operational conditions | |
| Operating temperature (T-T) | -1 - 41 °C |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Certificates | |
| Compliance certificates | CE, REACH, RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| Country of origin | Taiwan |
| Shipping (inner) case net weight | 400 g |
| Sustainability compliance | Yes |
| Warranty period | 2 year(s) |
| Compliance certificates | CE, REACH, RoHS |
| Other features | |
| Width | 42 mm |
| Height | 11 mm |
| Depth | 42 mm |
| Weight & dimensions | |
| Width | 42 mm |
| Height | 11 mm |
| Depth | 42 mm |
| Weight | 23.2 g |
| Package width | 145 mm |
| Package depth | 95 mm |
| Package height | 25 mm |
| Package weight | 55.5 g |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 95 mm |
| Package height | 25 mm |
| Package type | Box |
| Package weight | 55.5 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Logistics data | |
| Master (outer) case width | 225 mm |
| Master (outer) case length | 321 mm |
| Master (outer) case height | 180 mm |
| Master (outer) case gross weight | 2.5 kg |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 24712795088773 |
| Shipping (inner) case width | 10.5 cm |
| Shipping (inner) case length | 15 cm |
| Shipping (inner) case height | 16 cm |
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case net weight | 400 g |
| Export Control Classification Number (ECCN) | EAR99 |
| Warranty period | 2 year(s) |
