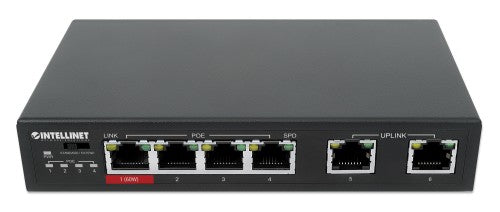

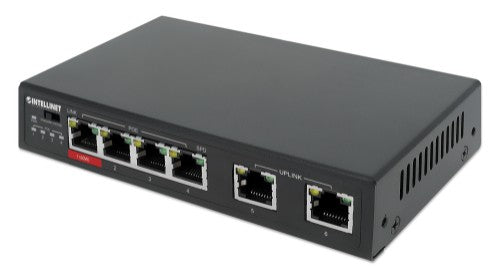

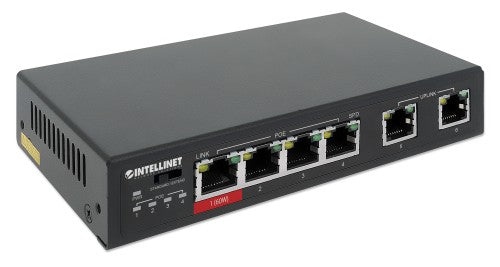

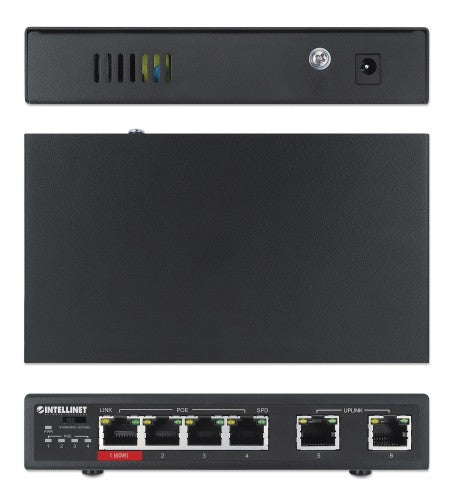

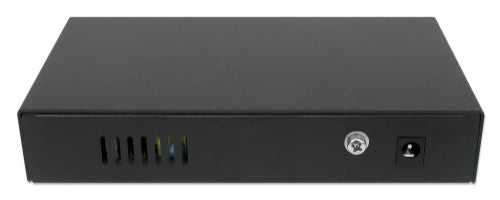

6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power 60 W PSE PoE Port, Three IEEE 802.3at/af PSE PoE Ports, PoE Power Budget of 65 W, PoE Extend Mode, Two RJ45 Uplink Ports, VLAN
The 6-Port Fast Ethernet Switch with 4 PoE Ports from Intellinet Network Solutions stands out with useful features that are particularly useful for IP camera installations. A manual PoE extend mode – to be activated at the flip of a switch – reduces network speed and extends PoE support up to 250 m (820 ft.), which is ideal for remote IP cams and other PoE devices.
Save time and money with Power over Ethernet
Three of its four PoE ports deliver data and power up to 30 W each to IEEE 802.3at or IEEE 802.3af-compliant PoE devices such as wireless access points, VoIP phones and IP cameras. One high-power PoE port even delivers up to 60 W with a total PoE power budget of 65 watts. Devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter.
Intellinet 6-Port Fast Ethernet Switch with 4 PoE Ports (1 x High-Power PoE), One High-Power 60 W PSE PoE Port, Three IEEE 802.3at/af PSE PoE Ports, PoE Power Budget of 65 W, PoE Extend Mode, Two RJ45 Uplink Ports, VLAN
£50.31
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Provides up to four PoE network devices with power and data
- Manual PoE extend mode (reduces network speed and extends PoE support to 250 m/820 ft.)
- PoE extend mode ideal for IP camera installations
- One high-power PSE PoE Port with power up to 60 W, three IEEE 802.3at/af PSE PoE Ports with up to 30 W each
- PoE power budget of 65 watts
- Two RJ45 Fast Ethernet uplink ports
- On/off switch to toggle VLAN
- Saves time and money by delivering data and power via existing network cables
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
- Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
- Grounding point to protect equipment from external electrical surges
- 10/100 auto-sensing ports automatically detect optimal network speeds
- Switch fabric of 1.2 Gbps
- Supports 1k MAC address entries with Auto-Learning and Auto-Aging
- Store and forward switching architecture
- Supports IEEE 802.3x flow control on full duplex and backpressure on half duplex
- LEDs for power, link/activity and PoE
- Fanless design ideal for silent operation
- Fully NDAA-compliant
Description
A Fast Ethernet PoE Switch with extend mode and a lot of PoE power - ideal for IP camera installationsThe 6-Port Fast Ethernet Switch with 4 PoE Ports from Intellinet Network Solutions stands out with useful features that are particularly useful for IP camera installations. A manual PoE extend mode – to be activated at the flip of a switch – reduces network speed and extends PoE support up to 250 m (820 ft.), which is ideal for remote IP cams and other PoE devices.
Save time and money with Power over Ethernet
Three of its four PoE ports deliver data and power up to 30 W each to IEEE 802.3at or IEEE 802.3af-compliant PoE devices such as wireless access points, VoIP phones and IP cameras. One high-power PoE port even delivers up to 60 W with a total PoE power budget of 65 watts. Devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter.
Specifications
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Cable types supported | Cat5e |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Half duplex | Yes |
| Data transmission | |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| MAC address table | 1000 entries |
| Switching capacity | 1.2 Gbit/s |
| Store-and-forward | Yes |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power |
| Housing material | Metal |
| Rack mounting | No |
| Certification | FCC Class B, CE, RoHS, UKCA, NDAA |
| Power | |

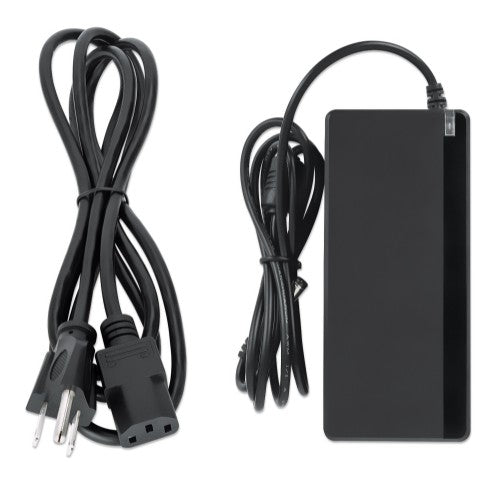

| Power supply included | Yes |
| Power protection features | Over voltage, Overload, Short circuit |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 44 - 57 V |
| Power source | AC/PoE |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 65 W |
| Power over Ethernet (PoE) | Yes |
| Power protection features | Over voltage, Overload, Short circuit |
| Other features | |
| Warranty period | 3 year(s) |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 153 mm |
| Depth | 87 mm |
| Height | 29 mm |
| Weight | 410 g |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 140 mm |
| Package depth | 190 mm |
| Package height | 70 mm |
| Package weight | 830 g |
| Manual | Yes |
| Technical details | |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | No |
| Warranty period | 3 year(s) |
| Certificates | |
| Certification | FCC Class B, CE, RoHS, UKCA, NDAA |
| Indication | |
| LED indicators | Activity, Link, PoE, Power |
| Logistics data | |
| Master (outer) case width | 305 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 380 mm |
| Master (outer) case gross weight | 18.9 kg |
| Products per master (outer) case | 20 pc(s) |
