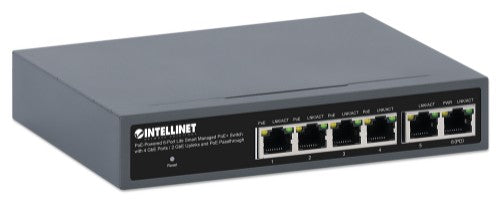

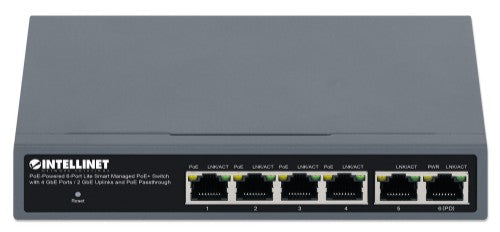

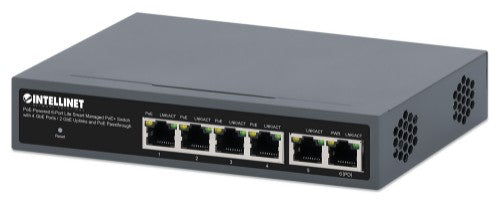

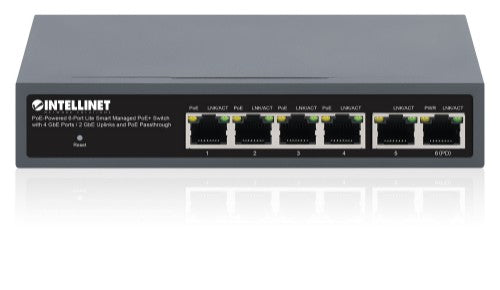

PoE-Powered 6-Port Lite Smart Managed PoE+ Switch with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough (with UK power cord)
The PoE-Powered 6-Port Lite Smart Managed PoE+ Switch with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough from Intellinet Network Solutions is designed to take power from a PoE switch or injector and pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with six Gigabit Ethernet ports, this switch can power up to four wireless LAN access points and bridges, VoIP phones or IP video cameras, draw its own power from the PoE switch it is connected to, and deliver network speeds up to 1,000 Mbps.
Usable as a PoE extender
Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also eliminates the time and expense of electrical rewiring, which minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 30 W to compatible devices.
Lite and smart network management
With a simplified web interface and the most common configuration options, this switch is reduced to the essentials for a user-friendly installation.
The Perfect Workgroup Switch
When you connect the PD port (port 6) to a PoE injector or switch, this product uses some of the electric current to power itself. It then passes the available surplus power to four or fewer PoE edge devices, such as VoIP phones, allowing you to realize the full potential of each of the PSE ports in your data center.
Eliminate Bottlenecks with Gigabit Speeds
Equipped with six auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the switch's 12 Gbps switch fabric provides plenty of performance for your computers and other networking devices.
Wall-mount option

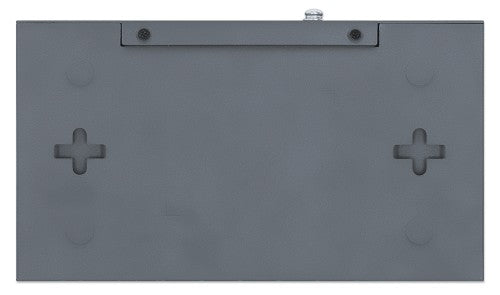

For full installation flexibility, you can mount the switch on the wall through its four built-in holes or use the included non-slip rubber feet to place it on a desktop.
Intellinet PoE-Powered 6-Port Lite Smart Managed PoE+ Switch with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough (with UK power cord)
£105.76
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Provides up to four PoE network devices with power and data
- Two RJ45 Gigabit uplink ports
- Self-Healing Network - the Powered Device Monitor feature (PDM), also known as PD Alive Check, restarts any connected PoE device that fails to respond or send out network traffic
- Lite Smart Management, with a simplified web interface and the most common configuration options for a user-friendly installation
- Domotz compatible for cloud management
- Can be powered via PoE or the included power cable; 60 W PoE power budget through 95 W PD input or AC power
- Power output up to 30 watts per port
- Supports 802.1Q VLAN (tag-based and port-based)
- 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
- Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
- Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
- Supports jumbo frames up to 9216 Bytes
- 12 Gbps switch fabric / switching capacity
- Supports bandwidth control per port
- Supports port mirroring
- Supports port traffic statistics, cable diagnostics and loopback protection
- Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
- Supports 8k MAC address entries with Auto-learning and Auto-aging
- Buffer memory of 4.1 Mbits

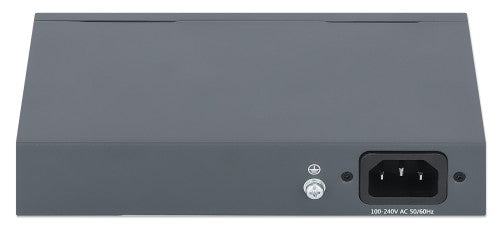

- Grounding point to protect equipment from external electrical surges
- PoE surge protection up to 4 kV in common mode and 2 kV in differential mode for all RJ45 ports
- ESD protection up to 8 kV for air and 6 kV for contact
- Installation holes for wall mounting
- Rubber feet for non-slip desktop use
- LEDs for power, link/activity and PoE
- Fanless design for silent operation
- ONVIF compliant
- Fully NDAA-compliant
Description
A managed PoE passthrough switch to get the most out of each Power over Ethernet connectionThe PoE-Powered 6-Port Lite Smart Managed PoE+ Switch with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough from Intellinet Network Solutions is designed to take power from a PoE switch or injector and pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with six Gigabit Ethernet ports, this switch can power up to four wireless LAN access points and bridges, VoIP phones or IP video cameras, draw its own power from the PoE switch it is connected to, and deliver network speeds up to 1,000 Mbps.
Usable as a PoE extender
Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also eliminates the time and expense of electrical rewiring, which minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 30 W to compatible devices.
Lite and smart network management
With a simplified web interface and the most common configuration options, this switch is reduced to the essentials for a user-friendly installation.
The Perfect Workgroup Switch
When you connect the PD port (port 6) to a PoE injector or switch, this product uses some of the electric current to power itself. It then passes the available surplus power to four or fewer PoE edge devices, such as VoIP phones, allowing you to realize the full potential of each of the PSE ports in your data center.
Eliminate Bottlenecks with Gigabit Speeds
Equipped with six auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the switch's 12 Gbps switch fabric provides plenty of performance for your computers and other networking devices.
Wall-mount option
For full installation flexibility, you can mount the switch on the wall through its four built-in holes or use the included non-slip rubber feet to place it on a desktop.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | AC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Cable types supported | Cat5e |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| 10G support | No |
| Half duplex | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Data transmission | |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8000 entries |
| Switching capacity | 12 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 8.93 Mpps |
| Design | |
| Wall mountable | Yes |
| Reset button | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power |
| Housing material | Metal |
| Rack mounting | No |
| Certification | FCC, CE, RoHS, UKCA, NDAA |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| Packet buffer memory | 4.1 MB |
| Power | |
| Power consumption (max) | 65 W |
| Power protection features | Over voltage, Overload, Short circuit, Surge protection |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC/PoE |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| Power protection features | Over voltage, Overload, Short circuit, Surge protection |
| Other features | |
| Warranty period | 3 year(s) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 168 mm |
| Depth | 94 mm |
| Height | 32 mm |
| Weight | 550 g |
| Packaging content | |
| Manual | Yes |

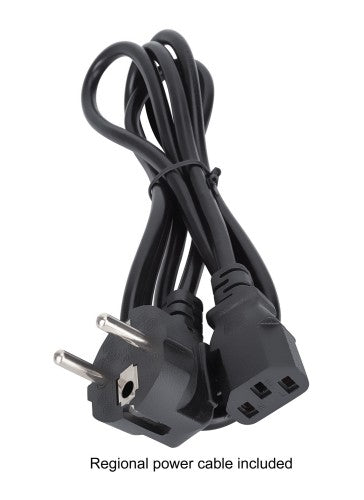

| Cables included | AC |
| Packaging data | |
| Package type | Box |
| Package width | 168 mm |
| Package depth | 200 mm |
| Package height | 65 mm |
| Package weight | 840 g |
| Manual | Yes |
| Cables included | AC |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 50000 h |
| Housing material | Metal |
| Rack mounting | No |
| Warranty period | 3 year(s) |
| Memory | |
| Packet buffer memory | 4.1 MB |
| Certificates | |
| Certification | FCC, CE, RoHS, UKCA, NDAA |
| Indication | |
| LED indicators | Activity, Link, PoE, Power |
| Logistics data | |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case height | 355 mm |
| Master (outer) case gross weight | 17.6 kg |
| Products per master (outer) case | 20 pc(s) |
