NetCommander 8-Port Cat5 1U Rack-Mount Console KVM Switch with 19-in. LCD, TAA
The B070-008-19 uses inexpensive, user-supplied Cat5e/6/6a and a Server Interface Unit so you can control computers/servers located up to 100 feet away from the switch. You can switch easily between the ports using an on-screen display (OSD) or keyboard hot key commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19-inch LCD screen supports video resolutions up to 1366 x 768.
The B070-008-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Note: B051-000 remote access IP unit is not compatible with the B070-008-19 or B070-016-19 NetCommander® Cat5 1U Rack-Mount Console KVM Switch Series.

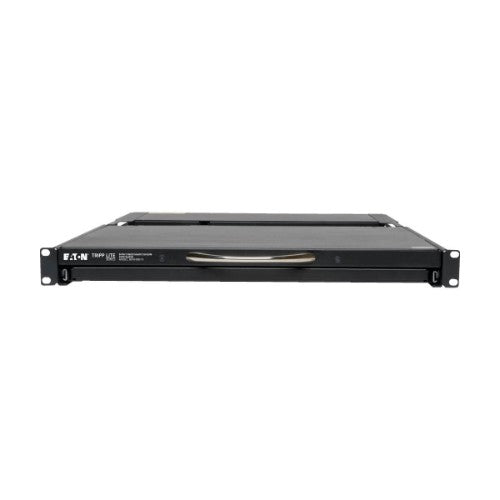

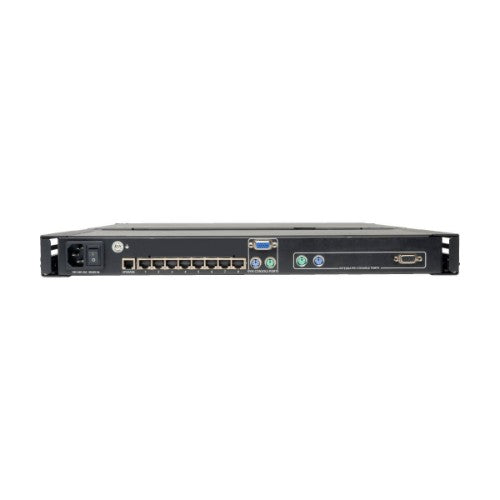

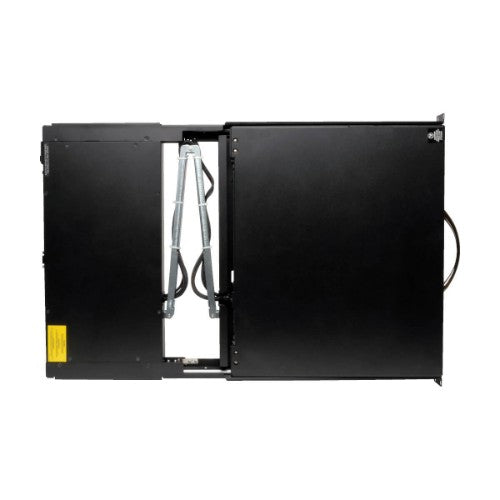

Tripp Lite B070-008-19 NetCommander 8-Port Cat5 1U Rack-Mount Console KVM Switch with 19-in. LCD
MPN:
B070-008-19
Out of stock
Sale price
£985.29 GBP
Regular price
£1,372.07 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- Occupies just 1U of space in a rack-mountable drawer
- Low-cost Cat5 cabling allows longer distances, reduces cable clutter
- 19” LCD screen supports video resolutions up to 1366 x 768
- Simplifies IT tasks with easy switching between all 8 ports
- Expandable - Cascade a second level of KVM switches to control up to 128 servers from a single station using B072-008-1, B072-008-1A, B072-016-1 and/or B072-016-1A to increase the number of ports.
- TAA compliant for GSA Schedule purchases
Description
The B070-008-19 KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to eight computers/servers.The B070-008-19 uses inexpensive, user-supplied Cat5e/6/6a and a Server Interface Unit so you can control computers/servers located up to 100 feet away from the switch. You can switch easily between the ports using an on-screen display (OSD) or keyboard hot key commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19-inch LCD screen supports video resolutions up to 1366 x 768.
The B070-008-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Note: B051-000 remote access IP unit is not compatible with the B070-008-19 or B070-016-19 NetCommander® Cat5 1U Rack-Mount Console KVM Switch Series.
Specifications
| Display | |
|---|---|
| Display | LCD |
| Display diagonal | 48.3 cm (19") |
| On Screen Display (OSD) | Yes |
| Display resolution | 1280 x 1024 pixels |
| Technical details | |
| Country of origin | Taiwan |
| Relative humidity | 0 - 80% |
| Operating temperature (T-T) | -40 - 158 °F |
| KVM switch ports quantity | 8 |
| Height (in Rack Units) | 1 |
| Product colour | Black |
| Built-in KVM switch | Yes |
| Weight (imperial) | 16.3 kg (36 lbs) |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Interface | VGA, USB, PS/2 |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Certificates | |
| Certification | UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1 |
| Weight & dimensions | |
| Weight | 14 kg |
| Width | 449.3 mm |
| Height | 43.4 mm |
| Depth | 722.4 mm |
| Packaging data | |
| Package width | 595.1 mm |
| Package depth | 833.9 mm |
| Package height | 160 mm |
| Package weight | 18.4 kg |
| Logistics data | |
| Master (outer) case width | 595.1 mm |
| Master (outer) case length | 833.9 mm |
| Master (outer) case height | 160 mm |
| Master (outer) case gross weight | 18.4 kg |
| Products per master (outer) case | 1 pc(s) |
