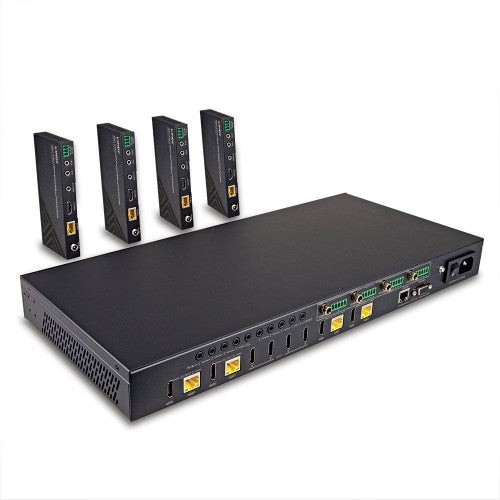

150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender
Supporting resolutions up to 4K60Hz including HDR and 1080p, the Matrix Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.
It supports several signals and features such as analog and coax de-embedded audio, IR matrix function and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI loop-out ports enables simultaneous viewing so that a local display can be connected for monitoring each HDBaseT output, or to create additional viewing zones.
PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver, meaning only the transmitter unit needs to be powered on.
This unit can be managed by pushing the buttons on the front panel via OSD menu with a OLED screen, IR remote control (included), RS-232 or TCP/IP commands and web GUI.
Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender
MPN:
38345
Out of stock
Sale price
£1,030.22 GBP
Regular price
£2,009.99 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- HDBaseT Matrix Extender that extends and distributes HDMI, IR and RS-232 signals to 4 displays at distances of up to 150m
- Supports resolutions up to 4K60Hz with HDR
- Features loop-through HDMI outputs for local monitoring
- Supports power over Cable (PoC), EDID management, downscaler and Audio de-embedding functions
- 2 year warranty
Description
The Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender is an high-end and complete solution to switch and extend 4 HDMI signals to 4 HDBaseT receivers using Cat.6 or above cables up to 150m.Supporting resolutions up to 4K60Hz including HDR and 1080p, the Matrix Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.
It supports several signals and features such as analog and coax de-embedded audio, IR matrix function and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI loop-out ports enables simultaneous viewing so that a local display can be connected for monitoring each HDBaseT output, or to create additional viewing zones.
PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver, meaning only the transmitter unit needs to be powered on.
This unit can be managed by pushing the buttons on the front panel via OSD menu with a OLED screen, IR remote control (included), RS-232 or TCP/IP commands and web GUI.
Specifications
| Features | |
|---|---|
| Material | Metal |
| HDCP | Yes |
| Signal-to-Noise Ratio (SNR) | 90 dB |
| On/off switch | Yes |
| Certification | California Proposition 65 |
| Audio formats supported | LPCM |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 150 m |
| Supported video modes | 1080p |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| HDCP pass-through | Yes |
| EDID management | Yes |
| HDCP version | 2.2 |
| Infrared (IR) frequency range | 20 - 60 kHz |
| High Dynamic Range (HDR) supported | Yes |
| Technical details | |
| Material | Metal |
| HDCP | Yes |
| Signal-to-Noise Ratio (SNR) | 90 dB |
| On/off switch | Yes |
| Certification | California Proposition 65 |
| Package type | Box |
| Audio formats supported | LPCM |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 150 m |
| Supported video modes | 1080p |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Sustainability compliance | Yes |
| Warranty period | 2 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| HDBaseT port | Yes |
| Audio RCA outputs | 4 |
| RS-232 input ports | 2 |
| RJ-45 output ports | 4 |
| HDMI in | 4 |
| Number of HDMI outputs | 5 |
| HDMI version | 2.0 |
| Audio (L/R) out | 4 |
| Connectivity technology | Wired |
| Digital audio coaxial out | 4 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power requirements | 60 W |
| Power source type | AC |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 440 mm |
| Receiver dimensions (WxDxH) | 140 x 65 x 18 mm |
| Package depth | 401 mm |
| Height | 45 mm |
| Depth | 200 mm |
| Package width | 510 mm |
| Package height | 98 mm |
| Weight | 5.31 kg |
| Package weight | 6.33 kg |
| Packaging data | |
| Package type | Box |
| Package depth | 401 mm |
| Package width | 510 mm |
| Package height | 98 mm |
| Package weight | 6.33 kg |
| Packaging content | |
| Packaging content | 4x4 HDBaseT Extender Matrix - Transmitter 4 x HDBaseT Receivers 5 x IR Emitter Cable, 1.5m 5 x IR Receiver Cable, 1.5m 10 x Mounting Ears & Screws 4 x 3-Pin Terminal Block 4 x 5-Pin Terminal Block RS-232 Male to Female cable, 1.5m 4 x mains cables (EU, UK, US & AUS), 1.5m Lindy Manual |
| Manual | Yes |
