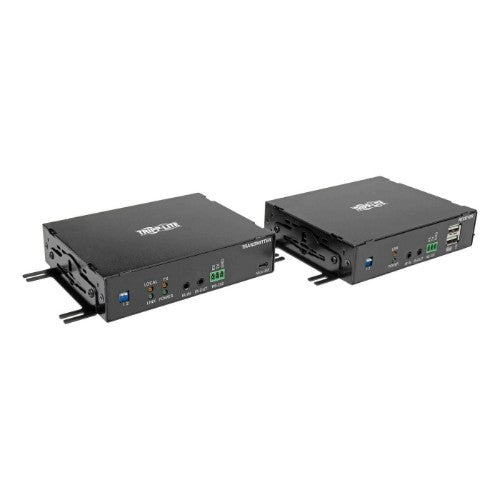

DisplayPort over Fiber Extender Kit, Transmitter/Receiver, 4K, 4:4:4, Singlemode LC, Up to 6.2 mi., TAA
This complete transmitter and receiver system is recommended for video presentations in digital signage applications where the source and display are farther apart than conventional A/V cables allow, such as airports, outdoor arenas and schools. The B127F-1A1-SM-DD extends 4K video and stereo audio signals from a DisplayPort (DP) source device to a DisplayPort monitor up to 6.2 miles (10 kilometers) away via user-supplied duplex singlemode LC fiber cabling.
Transmits Crystal-Clear 4K DisplayPort Video with Multi-Channel Audio and 4:4:4 Color
The B127F-1A1-SM-DD supports Ultra HD video resolutions up to 4K x 2K (3840 x 2160) at 30 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. This extender kit is compatible with HDCP 2.2, DisplayPort 1.2a and EDID standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

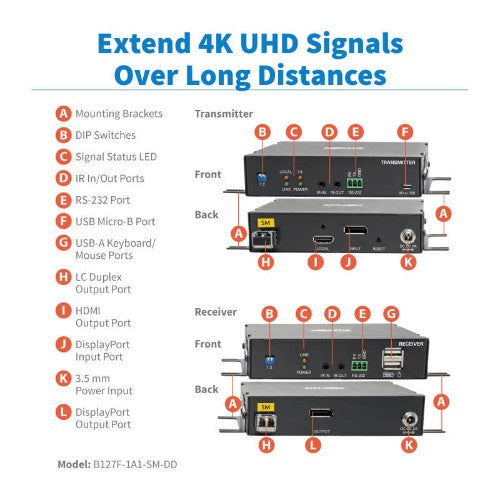

DIP Switches Extend Your Choice of USB, IR or RS-232 Signals
The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1, bi-directional IR and RS-232 functions. Only one function can be extended at a time.
Plug-and-Play Operation for Quick Setup and Immediate Use

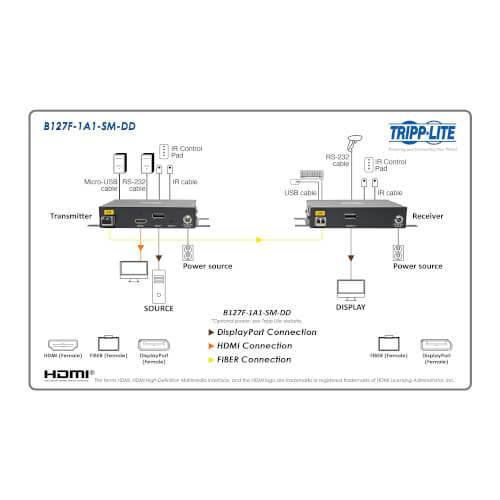

The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as P580-Series). Then, connect the two units using a duplex singlemode LC fiber cable (N320-Series). Connect an optional display to the transmitter’s local HDMI output to monitor the image connected to the receiver up to 6.2 miles away. The local port lets you connect displays with different resolutions without affecting the 4K signal transmission.
TAA-Compliant for GSA Schedule Purchases
The B127F-1A1-SM-DD is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Eaton B127F-1A1-SM-DD AV extender AV transmitter & transceiver Black
MPN:
B127F-1A1-SM-DD
Out of stock
Sale price
£588.16 GBP
Regular price
£1,254.07 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- Achieve 4K resolutions in long-range digital signage applications with no booster needed
- Supports UHD resolutions up to 4K @ 30 Hz (4:4:4) for crystal-clear video
- Supports uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio
- Local HDMI port allows displays with different resolutions without affecting 4K signal
- Plug-and-play operation with no software required for easy, immediate installation
Description
DisplayPort Extender for Digital Signage or Displaying Video in Schools or Trade Show BoothsThis complete transmitter and receiver system is recommended for video presentations in digital signage applications where the source and display are farther apart than conventional A/V cables allow, such as airports, outdoor arenas and schools. The B127F-1A1-SM-DD extends 4K video and stereo audio signals from a DisplayPort (DP) source device to a DisplayPort monitor up to 6.2 miles (10 kilometers) away via user-supplied duplex singlemode LC fiber cabling.
Transmits Crystal-Clear 4K DisplayPort Video with Multi-Channel Audio and 4:4:4 Color
The B127F-1A1-SM-DD supports Ultra HD video resolutions up to 4K x 2K (3840 x 2160) at 30 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. This extender kit is compatible with HDCP 2.2, DisplayPort 1.2a and EDID standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
DIP Switches Extend Your Choice of USB, IR or RS-232 Signals
The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1, bi-directional IR and RS-232 functions. Only one function can be extended at a time.
Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as P580-Series). Then, connect the two units using a duplex singlemode LC fiber cable (N320-Series). Connect an optional display to the transmitter’s local HDMI output to monitor the image connected to the receiver up to 6.2 miles away. The local port lets you connect displays with different resolutions without affecting the 4K signal transmission.
TAA-Compliant for GSA Schedule Purchases
The B127F-1A1-SM-DD is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Specifications
| Features | |
|---|---|
| Material | Metal |
| HDCP | Yes |
| Rack mounting | Yes |
| Wavelengths supported | 1310 nm |
| Maximum refresh rate | 30 Hz |
| Certification | CCC; CE; FCC; GS; PSE; TUV; UL; cUL |
| Type | AV transmitter & transceiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Fiber |
| Maximum transfer distance | 10000 m |
| LED indicators | Yes |
| Product colour | Black |
| Fiber optic wavelengths supported | 1310 nm |
| Fiber optic connector | LC |
| Fiber mode structure | Single-mode |
| Extended display identification data (EDID) | Yes |
| HDCP version | 2.2 |
| Technical details | |
| Material | Metal |
| HDCP | Yes |
| Rack mounting | Yes |
| Wavelengths supported | 1310 nm |
| Maximum refresh rate | 30 Hz |
| Certification | CCC; CE; FCC; GS; PSE; TUV; UL; cUL |
| Package type | Box |
| Type | AV transmitter & transceiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Fiber |
| Maximum transfer distance | 10000 m |
| Product colour | Black |
| Connectivity technology | Wired |
| Quantity per pack | 1 pc(s) |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| USB ports quantity | 3 |
| DisplayPorts out | 1 |
| DisplayPorts in | 1 |
| USB connector type | Micro-USB B, USB Type-A |
| HDMI in | 1 |
| Connectivity technology | Wired |
| Fiber optic connector | LC |
| Power | |
| Input current | 0.35 A |
| Output current | 2 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| External power adapter | Yes |
| Operating voltage | 5 V |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Storage relative humidity (H-H) | 0 - 85% |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Package depth | 150.1 mm |
| Package width | 343.9 mm |
| Package height | 83.1 mm |
| Package weight | 1.39 kg |
| Packaging data | |
| Package type | Box |
| Package depth | 150.1 mm |
| Package width | 343.9 mm |
| Package height | 83.1 mm |
| Package weight | 1.39 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | AC |
| AC adapter included | Yes |
| Manual | Yes |
| Included power plug types | AU, EU, NA, UK |
