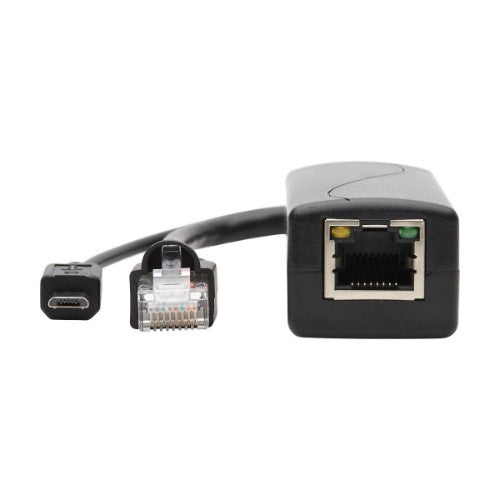

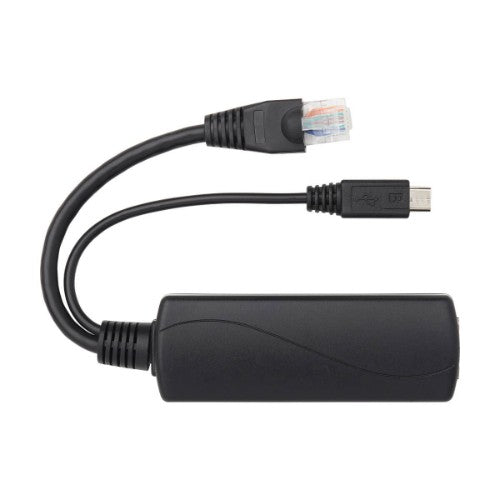

PoE to USB Micro-B and RJ45 Active Splitter - 802.af, 48V to 5V 1A, Up to 328.08 ft. (100 m)
Connect the NPOE-SPL-G-5VMU PoE (Power over Ethernet) splitter to your edge network up to 328 feet (100 meters) from a PoE switch or 48V injector. The splitter separates the power and data signals, delivering 5V 1A (5W) of power to the USB Micro-B plug and 10/100/1000 Mbps to the RJ45 data plug. This allows you more flexibility in placing devices in areas where an AC outlet is unavailable and too expensive or impractical to install.
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
This PoE splitter supplies the power (through its USB connector) to operate non-PoE equipment, such as security cameras, VoIP telephones and wireless access points (WAP). This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install devices in areas far away from AC outlets, such as poles or ceilings. The NPOE-SPL-G-5VMU supports a wide range of input voltages from 36VDC to 57VDC and has a fixed USB output of 5VDC.
Simple Plug-and-Play Installation Has the Splitter Connected in Minutes
No configuration or software is required to add the NPOE-SPL-G-5VMU to your LAN. It complies with 802.3af (PoE), 802.3 (Ethernet), 802.3u (Fast Ethernet) and 802.3ab (Gigabit Ethernet) standards.
Tripp Lite NPOE-SPL-G-5VMU PoE to USB Micro-B and RJ45 Active Splitter - 802.af, 48V to 5V 1A, Up to 328.08 ft. (100 m)
MPN:
NPOE-SPL-G-5VMU
Out of stock
Sale price
£11.02 GBP
Regular price
£16.09 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- Delivers power and data via Cat5e/6 cable up to 328.08-ft. (100 m) to edge network equipment
- Extends 5VDC power to any network device installed where no AC outlet is available
- Supports Gigabit Ethernet data transfer speeds up to 1000 Mbps (1 Gbps)
- Designed for PoE devices like Wireless Access Points and security cameras
- Quick and easy plug-and-play installation with no configuration necessary
Description
Split Your PoE Signal into Separate Power and Ethernet Connections for Edge NetworksConnect the NPOE-SPL-G-5VMU PoE (Power over Ethernet) splitter to your edge network up to 328 feet (100 meters) from a PoE switch or 48V injector. The splitter separates the power and data signals, delivering 5V 1A (5W) of power to the USB Micro-B plug and 10/100/1000 Mbps to the RJ45 data plug. This allows you more flexibility in placing devices in areas where an AC outlet is unavailable and too expensive or impractical to install.
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
This PoE splitter supplies the power (through its USB connector) to operate non-PoE equipment, such as security cameras, VoIP telephones and wireless access points (WAP). This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install devices in areas far away from AC outlets, such as poles or ceilings. The NPOE-SPL-G-5VMU supports a wide range of input voltages from 36VDC to 57VDC and has a fixed USB output of 5VDC.
Simple Plug-and-Play Installation Has the Splitter Connected in Minutes
No configuration or software is required to add the NPOE-SPL-G-5VMU to your LAN. It complies with 802.3af (PoE), 802.3 (Ethernet), 802.3u (Fast Ethernet) and 802.3ab (Gigabit Ethernet) standards.
Specifications
| Ports & interfaces | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Connector 2 | RJ-45, Micro-USB Type-B |
| Connector 1 | RJ-45 |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Performance | |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6a |
| Product colour | Black |
| Country of origin | China |
| Output current | 1000 mA |
| Output voltage | 5 V |
| Input voltage | 48 V |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | CE, FCC, REACH |
| Power | |
| Output current | 1000 mA |
| Output voltage | 5 V |
| Input voltage | 48 V |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Relative humidity | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
| Certification | CE, FCC, REACH |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 50 g |
| Packaging data | |
| Package width | 134.9 mm |
| Package height | 45 mm |
| Package depth | 55.1 mm |
| Package weight | 80 g |
| Technical details | |
| Output current | 1000 mA |
| Output voltage | 5 V |
| Input voltage | 48 V |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Product colour | Black |
| Country of origin | China |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Other features | |
| Country of origin | China |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Logistics data | |
| Country of origin | China |
| Master (outer) case gross weight | 800 g |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 255 mm |
| Master (outer) case length | 154.9 mm |
| Master (outer) case height | 134.9 mm |
| Master (outer) case GTIN (EAN/UPC) | 10037332242140 |
| Harmonized System (HS) code | 8504.40.9550 |
