Pos Android PCAP Touch Screen, 15 Inch, USB3.0, Android 8.1, Wi-Fi, Cortex-A17 1.8GHz
State of the art Projected Capacitive interactive technology offers the most responsive and sensitive touch experience available. Designed for commercial applications, PCAP touch technology works by fixing a sensor grid between a layer of cover glass and the LCD panel, when a finger touches the glass the grid detects the coordinates of the touch point. Unlike other touch technologies PCAP is not affected by dust or debris on the screen surface, allows for up to 10 touch points and offers superior optical quality.
Power Over Ethernet (PoE)
Power your screen by using the power cable provided or supply the power over an Ethernet cable. This minimises the number of cables needed for installation as you can supply power and internet connectivity to the screen simultaneously.
Versatile Touch Screen Solution
The POS PCAP Touch Screen is a versatile and flexible display with a wide range of applications. They can be used in corporate spaces in conjunction with meeting room booking software utilising the LED frame as a room availability indicator. These displays can also be used as point of sale touch screens in a host of locations too, such as retail, entertainment, hospitality, museums and art galleries.
VESA Mounting Holes
Unlike domestic tablets these displays have an integrated and secure screw based mounting solution on the rear for easy wall or stand installation.
No Integrated Battery
Unlike domestic tablets these displays do not have built-in batteries and therefore last considerably longer. They are designed to be used constantly 24/7 in public spaces and can be powered directly from the mains or over PoE.
Touch Content Management System (CMS)
You can run your own touch software from the integrated PC board with Android or take advantage of our user friendly Touch Cloud Management System that puts you in control as you create, deploy and touch your very own content on screen. First, you create your custom layouts with our user friendly software that requires no knowledge of coding to use. Then deploy the content from your PC direct to your Touch Screens in a matter of seconds. Now all that is left to do is touch as you let your content do the talking about your brand, company, service or product.

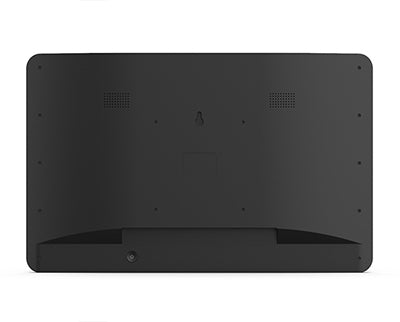

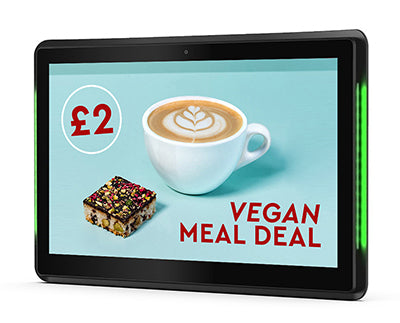

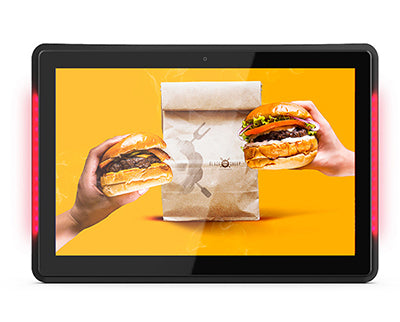

Allsee Technologies POS15HD7B Signage Display Interactive flat panel 38.1 cm (15") LCD Wi-Fi 450 cd/m² Black Touchscreen Built-in processor Android 8.1
Sale price
£300.83
Regular price
£360.00
Taxes included.
Shipping calculated at checkout.
Details
Description
PCAP Touch ScreenState of the art Projected Capacitive interactive technology offers the most responsive and sensitive touch experience available. Designed for commercial applications, PCAP touch technology works by fixing a sensor grid between a layer of cover glass and the LCD panel, when a finger touches the glass the grid detects the coordinates of the touch point. Unlike other touch technologies PCAP is not affected by dust or debris on the screen surface, allows for up to 10 touch points and offers superior optical quality.
Power Over Ethernet (PoE)
Power your screen by using the power cable provided or supply the power over an Ethernet cable. This minimises the number of cables needed for installation as you can supply power and internet connectivity to the screen simultaneously.
Versatile Touch Screen Solution
The POS PCAP Touch Screen is a versatile and flexible display with a wide range of applications. They can be used in corporate spaces in conjunction with meeting room booking software utilising the LED frame as a room availability indicator. These displays can also be used as point of sale touch screens in a host of locations too, such as retail, entertainment, hospitality, museums and art galleries.
VESA Mounting Holes
Unlike domestic tablets these displays have an integrated and secure screw based mounting solution on the rear for easy wall or stand installation.
No Integrated Battery
Unlike domestic tablets these displays do not have built-in batteries and therefore last considerably longer. They are designed to be used constantly 24/7 in public spaces and can be powered directly from the mains or over PoE.
Touch Content Management System (CMS)
You can run your own touch software from the integrated PC board with Android or take advantage of our user friendly Touch Cloud Management System that puts you in control as you create, deploy and touch your very own content on screen. First, you create your custom layouts with our user friendly software that requires no knowledge of coding to use. Then deploy the content from your PC direct to your Touch Screens in a matter of seconds. Now all that is left to do is touch as you let your content do the talking about your brand, company, service or product.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Display number of colours | 16.78 million colours |
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Display technology | LCD |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 450 cd/m² |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Native aspect ratio | 16:9 |
| Colour depth | 10 bit |
| Touchscreen technology | Capacitive |
| Multi-touch | Yes |
| Ports & interfaces | |
| USB port | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 3 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 3 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Mounting type | Wall |
| Performance | |
| Purpose | Commercial |
| Wi-Fi | Yes |
| Power | |
| Power consumption (typical) | 13.5 W |
| Input voltage | 12 V |
| Computer system | |
| Processor cores | 4 |
| Processor model | RK3288 |
| Processor frequency | 1.8 GHz |
| Operating system installed | Android 8.1 |
| Internal memory | 2 GB |
| Video formats supported | RM, RMVB, AVI, MPG, TS, MP4 |
| Audio formats supported | MP3, WMA |
| Image formats supported | PNG, BMP, GIF, JPG |
| Processor manufacturer | Rockchip |
| Built-in processor | Yes |
| On-board graphics card model | ARM Mali-T764 |
| Weight & dimensions | |
| Width | 401.8 mm |
| Depth | 30.2 mm |
| Height | 252.9 mm |
| Weight | 1.4 kg |
| Packaging data | |
| Package width | 493 mm |
| Package depth | 70 mm |
| Package height | 303 mm |
| Package weight | 2.25 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -30 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| VESA mounting | Yes |
| Depth (without stand) | 30.2 mm |
| Number of simultaneous touchpoints | 10 |
| Weight (without stand) | 1.4 kg |
| Height (without stand) | 252.9 mm |
| Thin Client | |
| Processor model | RK3288 |
| Processor frequency | 1.8 GHz |
| Operating system installed | Android 8.1 |
| Internal memory | 2 GB |
| Video formats supported | RM, RMVB, AVI, MPG, TS, MP4 |
| Audio formats supported | MP3, WMA |
| Image formats supported | PNG, BMP, GIF, JPG |
| Other features | |
| Depth (without stand) | 30.2 mm |
| Number of simultaneous touchpoints | 10 |
| Weight (without stand) | 1.4 kg |
| Height (without stand) | 252.9 mm |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| USB 2.0 ports quantity | 1 |
| On-board graphics card | Yes |
| Headphone outputs | 1 |
| Display technology | LCD |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Bluetooth version | 4.0 |
| Bluetooth | Yes |
| Input voltage | 12 V |
