8 Port VGA and USB Combo KVM Switch
The switch occupies only a single 1U space in a 19andrdquo; rack and supports screen resolutions of up to 2048x1536@60Hz, great for ensuring optimum clarity if used in digital media or graphic design scenarios. It provides 3 simple switching modes, via keyboard hotkeys, front panel buttons and On-Screen Display; setup and management options can be access only via the OSD.
A local console can be connected to the 2 USB and VGA ports on the rear panel while Daisy Chain VGA ports can be used to connect up to 8 Lindy Combo series switches in order to manage to up to 128 multi platform computers with security features and password access, perfect for large-scale control systems in transport hubs or surveillance centres. All the functions are accessible from the administrator through a simple to use On-Screen Display while LEDs on the front panel show the online and selected PC to ensure continuous control and monitoring.
PCs and connected KVM switches can be remove easily with hot plug support, allowing for maintenance to take place without the need for powering down all connected devices, essential within 'always on' environments such as data centres or traffic management setups.
Computers or servers can be connected to the 8 host ports on the rear panel via dedicated VGA and USB KVM cables (not included).These are available in different lengths:
1m - 32185
2m - 32186
3m - 32187

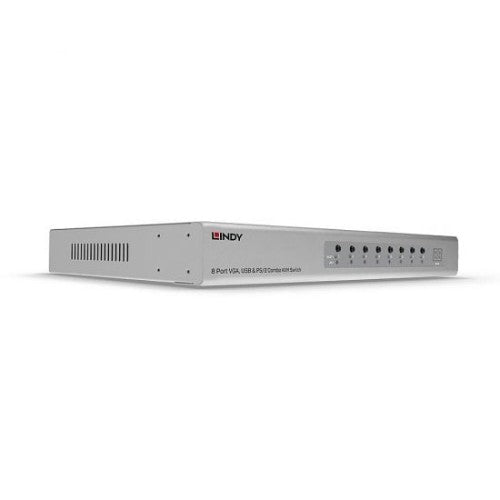

Lindy 8 Port VGA and USB Combo KVM Switch
MPN:
39526
Out of stock
Sale price
£175.03 GBP
Regular price
£303.86 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- Supports up to 8 USB and VGA equipped computers
- Supports VGA resolutions up to 2048x1536@60Hz
- Port switching via hotkey, On-Screen Display or front panel buttons
- PCs are connected via dedicated KVM cables (not included)
- 2 year warranty
Description
The Lindy Combo KVM Switch is a hardware solution that allows direct control of multiple computers using a single keyboard, mouse and VGA monitor. It's ideal for system administrators who want to control multiple computers or servers from a single, centralised location.The switch occupies only a single 1U space in a 19andrdquo; rack and supports screen resolutions of up to 2048x1536@60Hz, great for ensuring optimum clarity if used in digital media or graphic design scenarios. It provides 3 simple switching modes, via keyboard hotkeys, front panel buttons and On-Screen Display; setup and management options can be access only via the OSD.
A local console can be connected to the 2 USB and VGA ports on the rear panel while Daisy Chain VGA ports can be used to connect up to 8 Lindy Combo series switches in order to manage to up to 128 multi platform computers with security features and password access, perfect for large-scale control systems in transport hubs or surveillance centres. All the functions are accessible from the administrator through a simple to use On-Screen Display while LEDs on the front panel show the online and selected PC to ensure continuous control and monitoring.
PCs and connected KVM switches can be remove easily with hot plug support, allowing for maintenance to take place without the need for powering down all connected devices, essential within 'always on' environments such as data centres or traffic management setups.
Computers or servers can be connected to the 8 host ports on the rear panel via dedicated VGA and USB KVM cables (not included).These are available in different lengths:
1m - 32185
2m - 32186
3m - 32187
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 2 |
| Console ports | VGA (D-Sub) |
| Number of computers controlled | 8 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 8 |
| DC-in jack | Yes |
| Performance | |
| Daisy chain | Yes |
| HD type | Full HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 2048 x 1536 pixels |
| Technical details | |
| Product colour | Silver |
| Rack mounting | Yes |
| Cascadable | Yes |
| Compliance certificates | REACH, RoHS |
| Design | |
| Product colour | Silver |
| Rack mounting | Yes |
| Certification | CE, FCC, California Proposition 65 |
| Cascadable | Yes |
| Rack capacity | 1U |
| Housing material | Metal |
| Display | |
| Built-in display | Yes |
| Power | |
| Input current | 2 A |
| External power adapter | Yes |
| Input voltage | 9 V |
| Video | |
| HD type | Full HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 2048 x 1536 pixels |
| Sustainability | |
| Compliance certificates | REACH, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 1.5 kg |
| Package width | 570 mm |
| Package depth | 250 mm |
| Package height | 110 mm |
| Package weight | 3.3 kg |
| Packaging data | |
| Package width | 570 mm |
| Package depth | 250 mm |
| Package height | 110 mm |
| Package weight | 3.3 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | Daisy chain cable |
| Manual | Yes |
| AC adapter included | Yes |
| Certificates | |
| Certification | CE, FCC, California Proposition 65 |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
