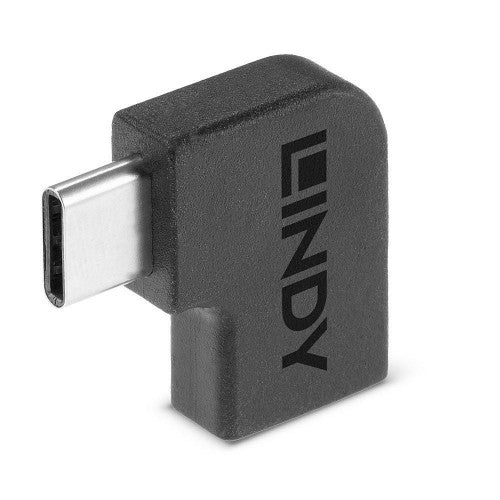

USB 3.2 Type C to C 90° Adapter
The Lindy USB 3.2 Type C to C 90° Adapter is a compact solution that allows users to connect a USB Type C cable to a USB Type C device with recessed or hard to reach ports. This adapter allows for a 90° connection to the left or right of the device. It is ideal to use as a strain relief for chargers and USB-C converters.
Data transfer speeds up to 20Gbps are supported for the quick and effortless transfer of large data volumes.
Lindy USB 3.2 Type C to C 90° Adapter
MPN:
41894
Low stock: 3
£4.00 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- Connects a USB Type C cable to a USB Type C device with recessed ports or within limited spaces
- Angled 90° left/right - can be used as a strain relief for chargers and USB-C converters
- Robust PVC housing, nickel connectors and gold plated contacts
- Supports data transfer speeds up to SuperSpeed USB 20Gbpsandnbsp; (USB 3.2 Gen 2x2)
- 10 year warranty
Description
USB adapters allow users to connect different USB interfaces to a device that uses a differing USB port.The Lindy USB 3.2 Type C to C 90° Adapter is a compact solution that allows users to connect a USB Type C cable to a USB Type C device with recessed or hard to reach ports. This adapter allows for a 90° connection to the left or right of the device. It is ideal to use as a strain relief for chargers and USB-C converters.
Data transfer speeds up to 20Gbps are supported for the quick and effortless transfer of large data volumes.
Specifications
| Ports & interfaces | |
|---|---|
| Connector contacts plating | Nickel/Gold |
| Connector 2 | USB 3.2 Type C |
| Connector 1 | USB 3.2 Type C |
| Connector 1 shielding | Copper foil |
| Connector 2 shielding | Copper foil |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Angled |
| Technical details | |
| Package type | Polybag |
| Product colour | Black |
| Housing material | Polyvinyl chloride (PVC) |
| Compliance certificates | REACH, RoHS |
| Design | |
| Housing material | Polyvinyl chloride (PVC) |
| Product colour | Black |
| Performance | |
| Housing material | Polyvinyl chloride (PVC) |
| Product colour | Black |
| Data transfer rate | 20 Gbit/s |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating temperature (T-T) | -10 - 80 °C |
| Weight & dimensions | |
| Width | 24.6 mm |
| Height | 6.3 mm |
| Depth | 23 mm |
| Packaging data | |
| Package type | Polybag |
