2 Port Dual Head DisplayPort 1.2 KVM Switch
Supporting the highest, practical, digital video resolutions up to 3840x2160@60Hz on two displays simultaneously, this switch is ideal for the most demanding office based tasks such as computer-aided design, videography, rendering and more, only made possible by its proficiency in outputting a combined resolution of 7680x2160.
Support for a wide-range of USB devices ensure maximum compatibility with existing keyboards, mice, headsets, printers and more, virtually guaranteeing integration of the switch in existing environments will be completely hassle-free. Female DisplayPort connectors provide flexibility and hands the user jurisdiction to use existing cabling in appropriate lengths.
Installation within new and existing set-ups is uncomplicated, thanks in part to its small form factor, as well as the pre-installed mounting hardware. An industrial, locking DC power connector provides peace of mind as accidental disconnections are almost impossible, perfect for mission critical medical or manufacturing applications.
Please Note: connection cables are not included

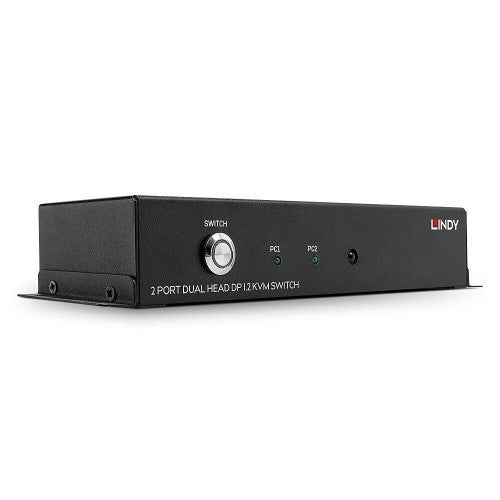

Lindy 2 Port Dual Head DisplayPort 1.2 KVM Switch
MPN:
39306
Out of stock
Sale price
£148.46 GBP
Regular price
£244.25 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- Provides control of two DisplayPort equipped computers using a keyboard, mouse and two displays
- Ultra-high definition resolutions of up to 3840x2160@60Hz provide exceptional visual performance
- Compatible with various USB devices including printers, storage devices and human interface devices (HID) such as mice and keyboards
- Switch between host PCandrsquo;s with ease with an IR remote control or front panel button
- 2 Year warranty
Description
The Lindy 2 Port Dual Head DP 1.2 KVM Switch is a powerful, compact solution for providing access and control over two dual head, DisplayPort equipped PCs using a single set of peripherals and displays. Four USB 2.0 ports allow for the connection and sharing of USB peripherals and storage devices between host PC's seamlessly.Supporting the highest, practical, digital video resolutions up to 3840x2160@60Hz on two displays simultaneously, this switch is ideal for the most demanding office based tasks such as computer-aided design, videography, rendering and more, only made possible by its proficiency in outputting a combined resolution of 7680x2160.
Support for a wide-range of USB devices ensure maximum compatibility with existing keyboards, mice, headsets, printers and more, virtually guaranteeing integration of the switch in existing environments will be completely hassle-free. Female DisplayPort connectors provide flexibility and hands the user jurisdiction to use existing cabling in appropriate lengths.
Installation within new and existing set-ups is uncomplicated, thanks in part to its small form factor, as well as the pre-installed mounting hardware. An industrial, locking DC power connector provides peace of mind as accidental disconnections are almost impossible, perfect for mission critical medical or manufacturing applications.
Please Note: connection cables are not included
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 4 |
| Console ports | DisplayPort, USB A |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.2 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| USB 2.0 Type-B ports quantity | 2 |
| HDCP | Yes |
| Performance | |
| HDCP | Yes |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Technical details | |
| Product colour | Black |
| Compliance certificates | REACH, RoHS |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| Power | |
| Power source | DC |
| Input voltage | 5 V |
| Video | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Sustainability | |
| Compliance certificates | REACH, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 184 mm |
| Depth | 35 mm |
| Height | 60 mm |
| Weight | 674 g |
| Package width | 235 mm |
| Package depth | 63 mm |
| Package height | 198 mm |
| Package weight | 860 g |
| Packaging data | |
| Package type | Box |
| Package width | 235 mm |
| Package depth | 63 mm |
| Package height | 198 mm |
| Package weight | 860 g |
| Packaging content | |
| Cables included | DC |
| Manual | Yes |
| Package type | Box |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
