LRA185KMM-001 rack console 48.3 cm (19") 1366 x 768 pixels Plastic, Steel Black 1U
The Avocent LRA Console family provides the simplicity, efficiency and ease of use to make it the perfect in data center access point. The LRA line enables ease of access to multiple servers making software upgrades, troubleshooting and system monitoring convenient and less time-consuming.
- Widescreen: 18.5” LED LCD panel with a 16:9 aspect ratio. Supports resolutions up to 1600 x 1200 at both full screen and aspect ratio.
- Form Factor: Easy access in the 1U space. Detent lock engages when stowed in the rack. Room for KVM installation in the same 1U space
- KVM Compatibility: LRA Consoles are compatible with all Avocent data center KVM switches
- User Interface: On-Screen menu has an intuitive design and can be accessed in 7 languages.
- Data Center Local Access: Complete entry point to local servers when needed.
- Ease of use: Full desktop style keyboard with number pad, touch pad and 2 USB 2.0 pass through ports.

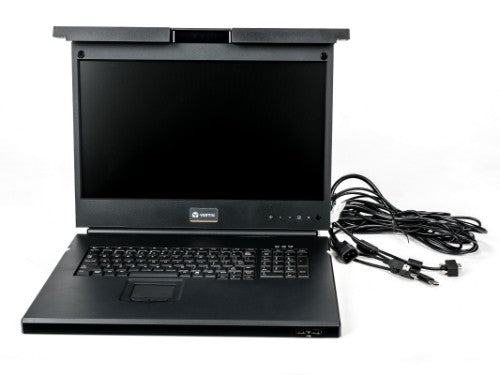

Vertiv Avocent LRA185KMM-001 rack console 48.3 cm (19") 1366 x 768 pixels Plastic, Steel Black 1U
MPN:
LRA185KMM-001
Out of stock
Sale price
£1,001.03 GBP
Regular price
£1,302.00 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- Form Factor - 1U Space
- Ease of use - Full desktop style keyboard with number pad, touch pad and 2 USB2.0 pass through ports
- Environmentally responsible - Low power usage during operation and standby
- Global availability - Certifications and keyboard language support
Description
Avocent LCD Local Rack Access ConsoleThe Avocent LRA Console family provides the simplicity, efficiency and ease of use to make it the perfect in data center access point. The LRA line enables ease of access to multiple servers making software upgrades, troubleshooting and system monitoring convenient and less time-consuming.
- Widescreen: 18.5” LED LCD panel with a 16:9 aspect ratio. Supports resolutions up to 1600 x 1200 at both full screen and aspect ratio.
- Form Factor: Easy access in the 1U space. Detent lock engages when stowed in the rack. Room for KVM installation in the same 1U space
- KVM Compatibility: LRA Consoles are compatible with all Avocent data center KVM switches
- User Interface: On-Screen menu has an intuitive design and can be accessed in 7 languages.
- Data Center Local Access: Complete entry point to local servers when needed.
- Ease of use: Full desktop style keyboard with number pad, touch pad and 2 USB 2.0 pass through ports.
Specifications
| Display | |
|---|---|
| Number of OSD languages | 7 |
| Display type | TFT |
| Display | TFT |
| Display diagonal | 48.3 cm (19") |
| Viewing angle, vertical | 160° |
| Viewing angle, horizontal | 170° |
| Viewable size, vertical | 23 cm |
| Viewable size, horizontal | 41 cm |
| Viewable size diagonal | 47 cm |
| Pixel pitch | 300 x 300 mm |
| On Screen Display (OSD) | Yes |
| Display resolution | 1366 x 768 pixels |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 1:1, 16:9 |
| Technical details | |
| Number of computers controlled | 1 |
| Display connection | Yes |
| On/off switch | Yes |
| LED indicators | Yes |
| Buttons | Auto, Menu |
| Size (imperial) | 48.3 cm (19") |
| Relative humidity | 10 - 80% |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Plug and Play | Yes |
| Operating temperature (T-T) | 0 - 50 °F |
| Operating relative humidity (H-H) | 10 - 80% |
| Maximum resolution | 1600 x 1200 pixels |
| Material | Plastic, Steel |
| Product colour | Black |

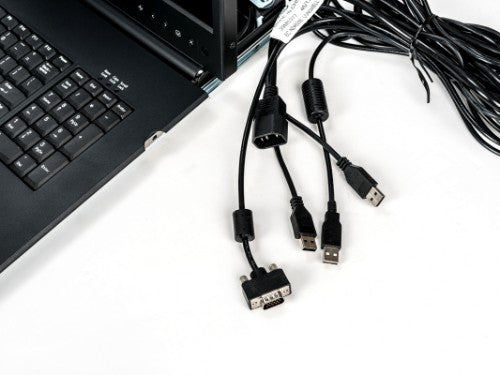

| Cables included | USB, VGA |
| Built-in KVM switch | No |
| Ports & interfaces | |
| Video port type | VGA |
| Mouse port type | USB |
| Keyboard port type | USB |
| USB 2.0 Type-A ports quantity | 2 |
| Interface | USB |
| Keyboard | |
| Keyboard layout | QWERTY |
| Keyboard language | US International |
| Built-in touchpad | Yes |
| Keyboard number of keys | 103 |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter input voltage | 90 - 264 V |
| AC adapter frequency | 50 - 60 Hz |
| Output current | 3.3 A |
| Power supply type | AC |
| Power consumption (typical) | 17 W |
| Power consumption (standby) | 0.5 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Certificates | |
| Certification | UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC FCC Class A |
| Weight & dimensions | |
| Mounting depth (min) | 61.3 cm |
| Mounting depth (max) | 70.6 cm |
| Weight | 9.98 kg |
| Width | 482.6 mm |
| Height | 44.5 mm |
| Depth | 533.4 mm |
| Packaging data | |
| Package weight | 15.4 kg |
| Package dimensions (WxDxH) | 749.3 x 584.2 x 216 mm |

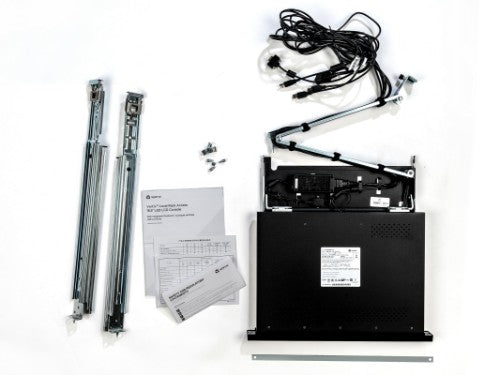

| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package type | Box |
| Rack mount kit | Yes |
| AC adapter included | Yes |
| Cables included | USB, VGA |
