7 Port USB 3.2 Gen 2 Metal Hub
Each port features individual short circuit protection - and all 7 USB ports support the Battery Charging specification 1.2 with a total charging power of 40 Watts for all 7 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Lindy 7 Port USB 3.2 Gen 2 Metal Hub
MPN:
43275
Out of stock
Sale price
£129.62 GBP
Regular price
£201.33 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- Connects 4 Type A and 3 Type C USB 3.2 Gen 2 devices to a Type C port with SuperSpeed+ data rates up to 10Gbpsandnbsp;
- Hard-wearing USB Hub - Perfect for industrial applications
- Robust metal housing with high EMC protection and integrated brackets for mountingandnbsp;
- Powered by external power supply or terminal block
- 2 year warranty
Description

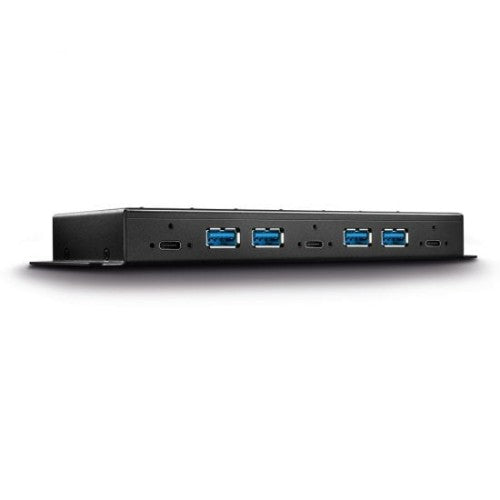

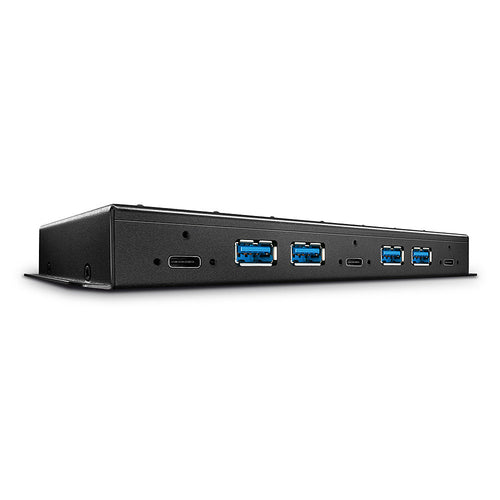

The Lindy 7 Port USB 3.2 Gen 2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps. This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.Each port features individual short circuit protection - and all 7 USB ports support the Battery Charging specification 1.2 with a total charging power of 40 Watts for all 7 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| DC-in jack | Yes |
| Ports quantity | 7 |
| Features | |
| Product colour | Black |
| Certification | CE, FCC, RoHS, REACH, California Proposition 65 |
| Data transfer rate | 10000 Mbit/s |
| Housing material | Metal |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| Data transmission | |
| Data transfer rate | 10000 Mbit/s |
| Power | |
| Input current | 3 A |
| Input voltage | 16 V |
| Technical details | |
| Product colour | Black |
| Performance | |
| Certification | CE, FCC, RoHS, REACH, California Proposition 65 |
| Data transfer rate | 10000 Mbit/s |
| Weight & dimensions | |
| Weight | 700 g |
| Width | 184.5 mm |
| Depth | 64.3 mm |
| Height | 20 mm |
| Package width | 260 mm |
| Package depth | 180 mm |
| Package height | 70 mm |
| Packaging data | |
| Package type | Carton |
| Package width | 260 mm |
| Package depth | 180 mm |
| Package height | 70 mm |
| Quantity per pack | 1 pc(s) |
| Design | |
| Product colour | Black |
| Certification | CE, FCC, RoHS, REACH, California Proposition 65 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certificates | |
| Certification | CE, FCC, RoHS, REACH, California Proposition 65 |
| Packaging content | |
| Package type | Carton |
