4 Port USB 3.2 Gen 2 Type C Metal Hub
This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection.
With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.
Each port features individual short circuit protection - and all 4 USB ports support the Battery Charging specification 1.2 with a total charging power of 17.5 Watt for all 4 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

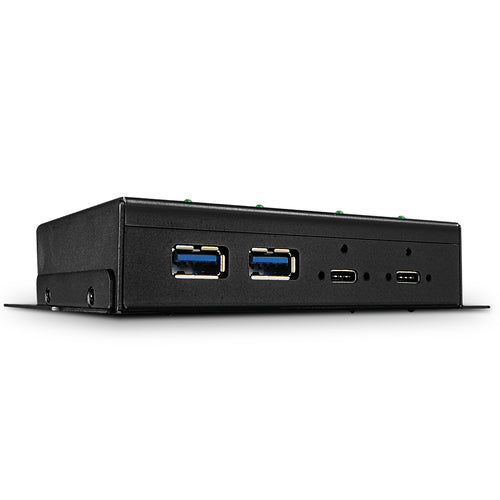

Lindy 4 Port USB 3.2 Gen 2 Type C Metal Hub
MPN:
43094
Low stock: 1
Sale price
£83.26 GBP
Regular price
£117.18 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- Connects 2 Type A and 2 Type C USB 3.2 Gen 2 devices to a Type C port with SuperSpeed+ data rates up to 10Gbps
- Hard-wearing USB Hub - Perfect for industrial applications
- Robust metal housing with high EMC protection and integrated brackets for mounting
- Powered by external power supply or terminal block
- 2 year warranty
Description
The Lindy 4 Port USB 3.2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps.This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection.
With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.
Each port features individual short circuit protection - and all 4 USB ports support the Battery Charging specification 1.2 with a total charging power of 17.5 Watt for all 4 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Terminal block port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Hub interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| DC-in jack | Yes |
| Ports quantity | 4 |
| Features | |
| Product colour | Black |
| Certification | CE, FCC, RoHS, REACH |
| Data transfer rate | 10000 Mbit/s |
| Housing material | Metal |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Data transmission | |
| Data transfer rate | 10000 Mbit/s |
| Power | |
| Input current | 4 A |
| Input voltage | 5 V |
| Technical details | |
| Product colour | Black |
| Operating temperature (T-T) | 32 - 122 °F |
| Performance | |
| Certification | CE, FCC, RoHS, REACH |
| Data transfer rate | 10000 Mbit/s |
| Harmonized System (HS) code | 84719000 |
| Weight & dimensions | |
| Weight | 229 g |
| Width | 135 mm |
| Depth | 60 mm |
| Height | 24 mm |
| Package width | 230 mm |
| Package depth | 198 mm |
| Package height | 63 mm |
| Package weight | 667 g |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 198 mm |
| Package height | 63 mm |
| Package weight | 667 g |
| Packaging content | |
| Manual | Yes |
| Cables included | USB Type-C |
| AC adapter included | Yes |
| Design | |
| Product colour | Black |
| Certification | CE, FCC, RoHS, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 32 - 122 °F |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Certificates | |
| Certification | CE, FCC, RoHS, REACH |
| Logistics data | |
| Harmonized System (HS) code | 84719000 |
