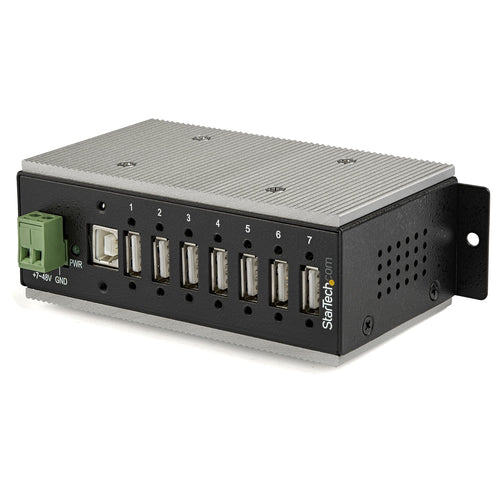

StarTech.com 7-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD & 350W Surge Protection - Extended Operating Temp -40 to 185°F - Din Rail/Wall/Desk Mountable - USB Expander Hub (HB20A7AME)
This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for more extreme environments, the rugged hub also supports a wide operating temperature range (-40°C to 85°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect More USB Devices
Designed for a high volume of connections, this robust USB 2.0 hub offers seven connection ports, for connecting more USB devices and peripherals.
Locate the Hub Where You Need It Most
With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works with Older USB Devices
The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.
The HB20A7AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com 7-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD & 350W Surge Protection - Extended Operating Temp -40 to 185°F - Din Rail/Wall/Desk Mountable - USB Expander Hub
MPN:
HB20A7AME
Out of stock
Sale price
£143.99 GBP
Regular price
£177.33 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- 7 PORT USB 2.0 HUB: Expand the connectivity of a USB Type-A computer by adding 7x USB 2.0 high speed ports w/screw lock; Speeds up to 480Mbps shared across devices; Flexible 7 to 48V DC power input
- EXTENDED TEMPERATURE RANGE: USB port expander rated for operation between -40°F to 185°F (-40°C to 80°C) w/relative humidity from 5 ~ 95% / Aluminum heat sinks on enclosure to protect from temp spikes
- ESD PROTECTION: USB Hub with 15kV Air and 8kV Contact electrostatic (ESD) protection & 350W surge protection, this rugged metal-enclosed hub is suitable for harsh industrial/commercial environments
- INSTALLATION FLEXIBILITY: Ear mount & DIN rail mountable (bracket incl) for wall/desk surface locations; Incl terminal block power connector, 6.6' (2m) USB host cable w/screw-lock connector on hub
- WIDE COMPATIBILITY: USB expansion hub is OS independent, supports Windows, macOS, Linux, iPadOS, Chrome OS, Android; Works w/USB 1.1; Multi Transaction Translator (MTT) support for mixed speed devices
Description
Extended Temperature| 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 MbpsThis TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for more extreme environments, the rugged hub also supports a wide operating temperature range (-40°C to 85°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect More USB Devices
Designed for a high volume of connections, this robust USB 2.0 hub offers seven connection ports, for connecting more USB devices and peripherals.
Locate the Hub Where You Need It Most
With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works with Older USB Devices
The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.
The HB20A7AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB 2.0 Type-B |
| Terminal block port | Yes |
| Hub interfaces | USB 2.0 |
| USB 2.0 ports quantity | 7 |
| Ports quantity | 7 |
| Features | |
| Surge protection | Yes |
| Plug and Play | Yes |
| LED indicators | Power |
| Product colour | Black |
| Certification | CE, FCC, TAA, RoHS, REACH |
| Data transfer rate | 480 Mbit/s |
| Housing material | Metal |
| Host interface | USB 2.0 Type-B |
| Data transmission | |
| Data transfer rate | 480 Mbit/s |
| Power | |
| Input current | 4 A |
| Power consumption (typical) | 28 W |
| Input voltage | 7 - 48 V |
| Technical details | |
| Plug and Play | Yes |
| Product colour | Black |
| Performance | |
| Certification | CE, FCC, TAA, RoHS, REACH |
| Surge protection | Yes |
| Plug and Play | Yes |
| Data transfer rate | 480 Mbit/s |
| Harmonized System (HS) code | 84719000 |
| Weight & dimensions | |
| Weight | 404 g |
| Width | 63 mm |
| Depth | 130 mm |
| Height | 42 mm |
| Package width | 166 mm |
| Package depth | 242 mm |
| Package height | 55 mm |
| Package weight | 600 g |
| Packaging data | |
| Package width | 166 mm |
| Package depth | 242 mm |
| Package height | 55 mm |
| Package weight | 600 g |
| Packaging content | |
| Manual | Yes |
| Cables included | USB |
| DIN rail kit included | Yes |
| Design | |
| LED indicators | Power |
| Product colour | Black |
| Certification | CE, FCC, TAA, RoHS, REACH |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | CE, FCC, TAA, RoHS, REACH |
| Indication | |
| LED indicators | Power |
| Logistics data | |
| Master (outer) case width | 435 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 260 mm |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Other features | |
| Chipset | Genesys Logic - GL852GT |
