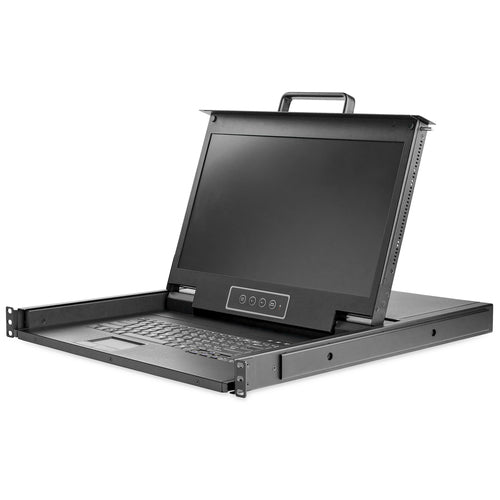

StarTech.com Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF (RKCONS17HD)
Providing centralized control of your single PC or dozens of servers, this HD rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet. Connected to your servers through a separate KVM switch (sold separately), the LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.
High-Definition LCD Monitor
The 1080p KVM console’s monitor is 17.3” and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.
Clutter-Free Monitoring
The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Simple Setup

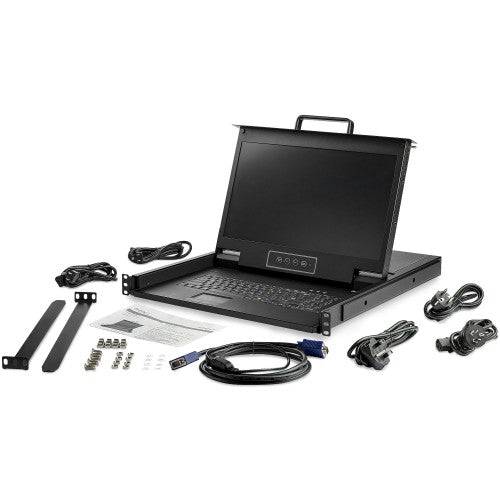

This single-port KVM console comes with everything you need to set up:
• 1 Audio Cable
• 1 Set of KVM Cables (VGA)
• 2 Rear Mounting Brackets
• M5 Cage Nuts and Screws
Cost Effective Solution
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display.
StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This rackmount KVM console is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
MPN:
RKCONS17HD
In stock: 14
£890.11 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- High Definition: Rackmount KVM console w/high-resolution widescreen (16:9) 1080p LCD panel is perfect for applications needing extra detail or substantial info on one screen E.g. IP camera monitoring
- Wide compatibility: This HD KVM console drawer works with virtually any KVM switch brand or model that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- Versatile Interfaces: Rack mount monitor with 17.3" Active Matrix TFT 16:9 widescreen
- 1U height
- Single Port
- Full keyboard + Trackpad
Description
Control your server or KVM switch from a centralized HD KVM consoleProviding centralized control of your single PC or dozens of servers, this HD rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet. Connected to your servers through a separate KVM switch (sold separately), the LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.
High-Definition LCD Monitor
The 1080p KVM console’s monitor is 17.3” and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.
Clutter-Free Monitoring
The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Simple Setup
This single-port KVM console comes with everything you need to set up:
• 1 Audio Cable
• 1 Set of KVM Cables (VGA)
• 2 Rear Mounting Brackets
• M5 Cage Nuts and Screws
Cost Effective Solution
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display.
StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This rackmount KVM console is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Display | |
|---|---|
| Display number of colours | 262144 colours |
| Display type | LCD |
| Display | TFT LCD |
| Display diagonal | 43.9 cm (17.3") |
| Viewing angle, vertical | 170° |
| Viewing angle, horizontal | 170° |
| Pixel pitch | 0.1989 x 0.1989 mm |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 300 cd/m² |
| Contrast ratio (typical) | 800:1 |
| Aspect ratio | 16:9 |
| Colour depth | 6 bit |
| Technical details | |
| Daisy chain | No |
| LED indicators | Power, Status |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Operating relative humidity (H-H) | 10 - 80% |
| Mean time between failures (MTBF) | 50000 h |
| Material | Steel |
| Product colour | Black |
| Cables included | KVM |
| IP control | No |
| Audio support | No |
| Cable length | 1.8 m |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Video port type | VGA |
| Keyboard | |
| Built-in touchpad | Yes |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Power consumption (typical) | 13 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
| Certification | CE, FCC, PSE, UL, REACH |
| Weight & dimensions | |
| Mounting depth (min) | 51 cm |
| Mounting depth (max) | 85 cm |
| Weight | 11.2 kg |
| Width | 483 mm |
| Height | 565 mm |
| Depth | 43 mm |
| Packaging data | |
| Package width | 615 mm |
| Package depth | 765 mm |
| Package height | 185 mm |
| Package weight | 16 kg |
| Packaging content | |
| Screws included | Yes |
| Quick installation guide | Yes |
| Cables included | KVM |
| Number of screws | 8 |
| Number of cage nuts | 8 |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Cage nuts included | Yes |
| Logistics data | |
| Master (outer) case width | 615 mm |
| Master (outer) case length | 765 mm |
| Master (outer) case height | 185 mm |
| Products per master (outer) case | 1 pc(s) |
