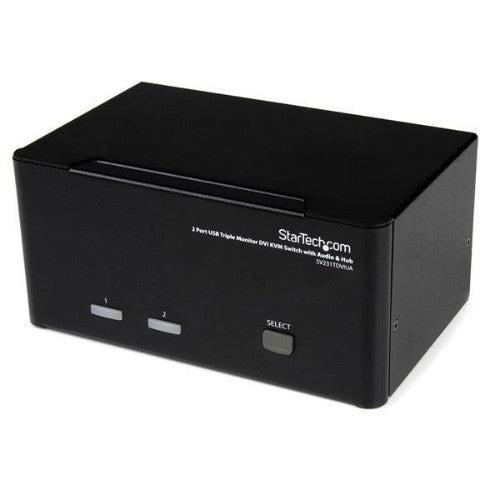

StarTech.com 2 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub - Multi Monitor KVM - Dual Port KVM Switch
The Triple DVI KVM switch enables you to switch back and forth between 2 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920x1200. The triple monitor DVI switch also features an integrated USB hub port which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs.
The SV231TDVIUA 2-Port Triple Head DVI KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.
PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections.
The StarTech.com Advantage
- By enabling control of two triple display computer systems using a single set of peripherals, the switch helps saves cost and work space
- With support for high definition resolutions (1920x1200) on each of the 3 connected monitors, the triple head KVM switch offers maximum screen real estate for optimized productivity
- Integrated USB 2.0 hub and mic/audio ports enable you to have full multimedia control of two computers, while sharing USB peripherals
StarTech.com 2 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub
MPN:
SV231TDVIUA
Out of stock
Sale price
£122.65 GBP
Regular price
£147.99 GBP
VAT included.
Shipping calculated at checkout.
Details
Description
The SV231TDVIUA 2-Port Triple Monitor DVI USB KVM Switch allows 2 PCs (each with 3 DVI video outputs) to share monitors, 1 microphone and set of speakers, 1 keyboard and 1 mouse, as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam.The Triple DVI KVM switch enables you to switch back and forth between 2 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920x1200. The triple monitor DVI switch also features an integrated USB hub port which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs.
The SV231TDVIUA 2-Port Triple Head DVI KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.
PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections.
The StarTech.com Advantage
- By enabling control of two triple display computer systems using a single set of peripherals, the switch helps saves cost and work space
- With support for high definition resolutions (1920x1200) on each of the 3 connected monitors, the triple head KVM switch offers maximum screen real estate for optimized productivity
- Integrated USB 2.0 hub and mic/audio ports enable you to have full multimedia control of two computers, while sharing USB peripherals
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 4 |
| Console ports | DVI-I, 3.5mm headphone, 3.5mm mic, USB A |
| Number of microphone inputs | 2 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| Audio connections | Yes |
| USB 2.0 ports quantity | 2 |
| Headphone outputs | 2 |
| DVI-I ports quantity | 6 |
| DC-in jack | Yes |
| HDCP | Yes |
| Performance | |
| Daisy chain | No |
| HDCP | Yes |
| Plug and Play | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 3,8,15,30 s |
| Number of users | 1 user(s) |
| Maximum digital resolution | 1920 x 1200 pixels |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Plug and Play | Yes |
| Scan interval | 3,8,15,30 s |
| On Screen Display (OSD) | No |
| Number of users | 1 user(s) |
| LED indicators | Activity |
| Hot keys | Yes |
| IP control | No |
| Audio support | Yes |
| Compliance certificates | RoHS |
| Design | |
| Mean time between failures (MTBF) | 62000 h |
| Product colour | Black |
| Rack mounting | No |
| LED indicators | Activity |
| Hot keys | Yes |
| Certification | CE, FCC |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input current | 0.8 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| Output voltage | 12 V |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Input voltage | 110-240 V |
| Video | |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum digital resolution | 1920 x 1200 pixels |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 159 mm |
| Depth | 100 mm |
| Height | 74 mm |
| Weight | 900 g |
| Package width | 185 mm |
| Package depth | 240 mm |
| Package height | 95 mm |
| Package weight | 1.41 kg |
| Packaging data | |
| Package width | 185 mm |
| Package depth | 240 mm |
| Package height | 95 mm |
| Package weight | 1.41 kg |
| Packaging content | |
| Rubber feet | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Certificates | |
| Certification | CE, FCC |
| Other features | |
| IP control | No |
| Audio support | Yes |
| Hot keys | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
