StarTech.com 4-in-1 Cable for KVMs with Dual Link DVI and USB - Audio & Microphone Cables Built-in - 6ft (2m) (DVID4N1USB6)
The DVID4N1USB6 6ft 4-in-1 USB Dual Link DVI-D KVM Switch Cable w/ Audio & Microphone integrates dual link DVI video quality with USB mouse, keyboard, 3.5mm audio out and microphone connections into a single, compact cable.
The 4-in-1 KVM cable is a cost-effective and convenient solution that's suitable for use with dual link DVI supported USB KVM switches, allowing you to share a USB peripheral set between two computers configured for high definition output.
Backed by a StarTech.com Lifetime Warranty.
Works with:
Compatible StarTech.com KVMs can be found under the Accessories section.
Aten models (CS1642, CS1644, CS1784, CS1782, CS1762, CS1764)
Avocent models (2SVDVI10-001, 4SVDVI10-001, SC4UAD, SC420, SC440, SC540)
Belkin models (F1DN102D, F1DN104D, F1DD102L, F1DD104L)
Cables to go models (52047, 52048)
The StarTech.com Advantage
StarTech.com KVM Cable for DVI and USB KVM Switches with Audio & Microphone - 6ft
MPN:
DVID4N1USB6
In stock: 8
£8.67 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- Combines 4 peripheral cables into one
- Dual Link DVI-D signal is supported
- Backwards compatible with DVI-D single link signals and devices
- Supports HDTV quality signal and above (2560 x 1600 @ Hz and higher resolutions at lower refresh rates)
- Meets and exceeds all DVI-D and USB 2.0 specifications
- Supports DVI-D Maximum clock frequency in dual link mode up to 7.92 Gbps)
Description
Connect high resolution DVI video, USB, and audio all in one cableThe DVID4N1USB6 6ft 4-in-1 USB Dual Link DVI-D KVM Switch Cable w/ Audio & Microphone integrates dual link DVI video quality with USB mouse, keyboard, 3.5mm audio out and microphone connections into a single, compact cable.
The 4-in-1 KVM cable is a cost-effective and convenient solution that's suitable for use with dual link DVI supported USB KVM switches, allowing you to share a USB peripheral set between two computers configured for high definition output.
Backed by a StarTech.com Lifetime Warranty.
Works with:
Compatible StarTech.com KVMs can be found under the Accessories section.
Aten models (CS1642, CS1644, CS1784, CS1782, CS1762, CS1764)
Avocent models (2SVDVI10-001, 4SVDVI10-001, SC4UAD, SC420, SC440, SC540)
Belkin models (F1DN102D, F1DN104D, F1DD102L, F1DD104L)
Cables to go models (52047, 52048)
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | DVI-D |
| Mouse port type | USB |
| Keyboard port type | USB |

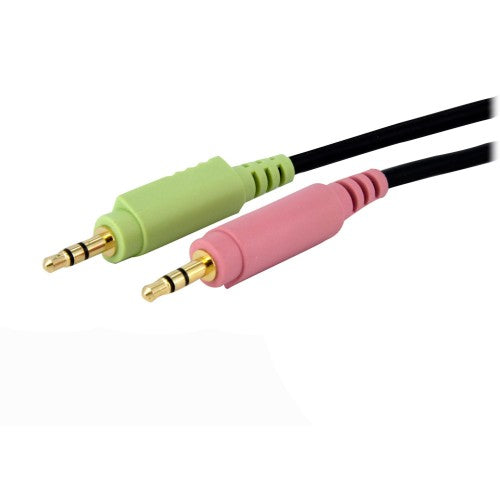

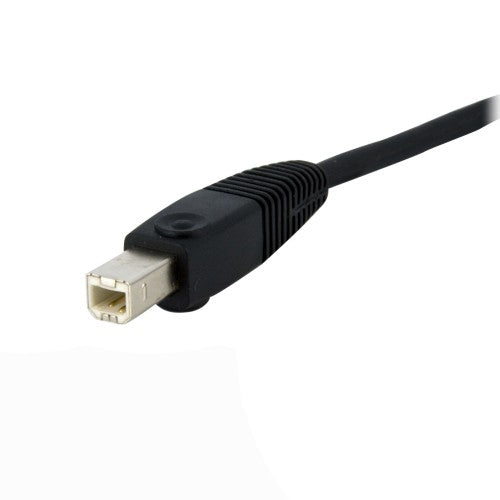

| Connector 2 | 1 x DVI-D, 1 x USB B, 2 x 3.5 mm |
| Connector 1 | 1 x DVI-D, 1 x USB A, 2 x 3.5 mm |
| Features | |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable length | 1.8 m |
| Weight | 453 g |
| Maximum video resolution | 2560 x 1600 pixels |
| Product colour | Black |
| Compatible products | Aten - CS1642, CS1644, CS1784, CS1782, CS1762, CS1764 Avocent - 2SVDVI10-001, 4SVDVI10-001, SV4UAD, SC420, SC440, SC540 Belkin - F1DN102D, F1DN104D, F1DD102L, F1DD104L Cables to go - 52047, 52048 |
| Technical details | |
| Cable length | 1.8 m |
| Weight | 453 g |
| Package depth | 330 mm |
| Package weight | 470 g |
| Maximum video resolution | 2560 x 1600 pixels |
| Product colour | Black |
| Weight & dimensions | |
| Cable length | 1.8 m |
| Weight | 453 g |
| Performance | |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable length | 1.8 m |
| Video port type | DVI-D |
| Mouse port type | USB |
| Maximum video resolution | 2560 x 1600 pixels |
| Keyboard port type | USB |
| Connector 2 | 1 x DVI-D, 1 x USB B, 2 x 3.5 mm |
| Connector 1 | 1 x DVI-D, 1 x USB A, 2 x 3.5 mm |
| Product colour | Black |
| Compatible products | Aten - CS1642, CS1644, CS1784, CS1782, CS1762, CS1764 Avocent - 2SVDVI10-001, 4SVDVI10-001, SV4UAD, SC420, SC440, SC540 Belkin - F1DN102D, F1DN104D, F1DD102L, F1DD104L Cables to go - 52047, 52048 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Packaging data | |
| Weight | 453 g |
| Package width | 255 mm |
| Package height | 40 mm |
| Package depth | 330 mm |
| Package weight | 470 g |
| Logistics data | |
| Master (outer) case width | 374 mm |
| Master (outer) case length | 429 mm |
| Master (outer) case height | 275 mm |
| Products per master (outer) case | 30 pc(s) |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Package depth | 330 mm |
| Product colour | Black |
