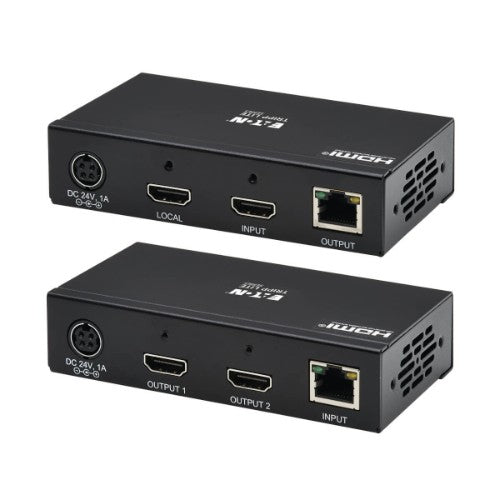

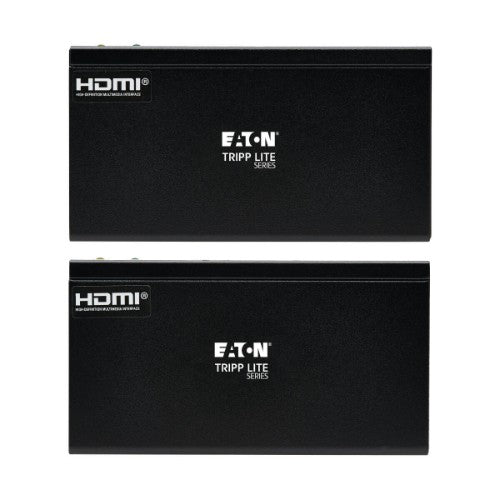

2-Port HDMI over Cat6 Extender Kit, Transmitter/Receiver - 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70.1 m), TAA
This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.
Extends a 4K A/V Transmission up to 230 ft....or More
The B127A-2A1-BHBH extends 4K signals from an HDMI source device to two HDMI displays up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. By adding a B127A-010-H HDMI repeater (sold separately) to the application, you can extend the signal up to 400 feet (121.9 meters).
Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The B127A-2A1-BHBH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with 7.1-channel surround sound audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter’s local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.
Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the transmitter or receiver over Cat6 cable. LEDs indicate when the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the unit where needed without worrying about finding a nearby AC outlet.
Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver work right out of the package with no software required. Mounting hardware is included for installing both units on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as P568- or P569-Series). Then, connect the receiver to the displays with user-supplied HDMI cables. Finally, connect the two units with user-supplied Cat6 cable (such as N202-Series).
TAA-Compliant for GSA Schedule Purchases
The B127A-2A1-BHBH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Tripp Lite B127A-2A1-BHBH 2-Port HDMI over Cat6 Extender Kit, Transmitter/Receiver - 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70.1 m), TAA
MPN:
B127A-2A1-BHBH
Out of stock
Sale price
£160.73 GBP
Regular price
£223.83 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- Supports 4K @ 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0
- Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
- Power over Cable (PoC) technology provides power to the receiver via Cat6 cable
- Transmitter's local port shows you the 4K image being displayed at the other end
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Description
Dual-Output Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture HallsThis complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.
Extends a 4K A/V Transmission up to 230 ft....or More
The B127A-2A1-BHBH extends 4K signals from an HDMI source device to two HDMI displays up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. By adding a B127A-010-H HDMI repeater (sold separately) to the application, you can extend the signal up to 400 feet (121.9 meters).
Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The B127A-2A1-BHBH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with 7.1-channel surround sound audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter’s local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.
Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the transmitter or receiver over Cat6 cable. LEDs indicate when the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the unit where needed without worrying about finding a nearby AC outlet.
Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver work right out of the package with no software required. Mounting hardware is included for installing both units on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as P568- or P569-Series). Then, connect the receiver to the displays with user-supplied HDMI cables. Finally, connect the two units with user-supplied Cat6 cable (such as N202-Series).
TAA-Compliant for GSA Schedule Purchases
The B127A-2A1-BHBH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Specifications
| Features | |
|---|---|
| Material | Metal |
| HDCP | Yes |
| Colour depth | 36 bit |
| Audio output channels | 7.1 channels |
| Wall mountable | Yes |
| Rack mounting | Yes |
| Consumer Electronics Control (CEC) support | No |
| 3D | Yes |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5, Cat5e, Cat6, HDMI |
| Maximum transfer distance | 70.1 m |
| Audio system | Multichannel |
| Supported video modes | 720p, 1080p, 2160p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| LED indicators | Yes |
| Cable length | 1.38 m |
| Product colour | Black |
| Extended display identification data (EDID) | Yes |
| HDCP version | 1.4/2.2 |
| Technical details | |
| Material | Metal |
| HDCP | Yes |
| Colour depth | 36 bit |
| Audio output channels | 7.1 channels |
| Wall mountable | Yes |
| Rack mounting | Yes |
| Consumer Electronics Control (CEC) support | No |
| 3D | Yes |
| Package type | Box |
| Ethernet LAN | Yes |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5, Cat5e, Cat6, HDMI |
| Maximum transfer distance | 70.1 m |
| Audio system | Multichannel |
| Supported video modes | 720p, 1080p, 2160p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Cable length | 1.38 m |
| Product colour | Black |
| Connectivity technology | Wired |
| Country of origin | Taiwan |
| Master (outer) case GTIN (EAN/UPC) | 10037332264098 |
| Sustainability compliance | Yes |
| Compliance certificates | CE, REACH, RoHS |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 2 |
| Number of HDMI outputs | 2 |
| HDMI version | 2.0 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Digital audio optical out | 1 |
| Power | |
| Input current | 0.6 A |
| Output current | 1 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| External power adapter | Yes |
| Operating voltage | 24 V |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Storage relative humidity (H-H) | 0 - 85% |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Transmitter dimensions (WxDxH) | 115 x 62.4 x 27 mm |
| Receiver dimensions (WxDxH) | 115 x 62.4 x 27 mm |
| Package depth | 164.1 mm |
| Package width | 260.1 mm |
| Package height | 54.9 mm |
| Package weight | 560 g |
| Packaging data | |
| Package type | Box |
| Package depth | 164.1 mm |
| Package width | 260.1 mm |
| Package height | 54.9 mm |
| Package weight | 560 g |

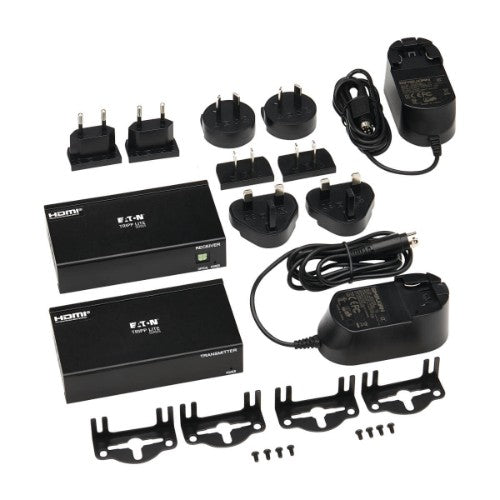

| Packaging content | |
| Mounting kit | Yes |
| AC adapter included | Yes |
| Manual | Yes |
| Included power plug types | AU, EU, NA, UK |
| Logistics data | |
| Master (outer) case width | 573 mm |
| Master (outer) case length | 273 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 5.9 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332264098 |
