10m USB 3.0 Active Extension Pro Hub
This hub features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
This 10m extension hub can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and this Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).
Using this hub as part of the USB 3.0 Active Extension System Pro
If you would like to use this hub as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.
This Active Extension Hub Pro must be installed as the final part of the extension system.
The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.
The final part of the extension can be any cable or hub from the Extension System Pro range.
If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit with its power supply as the final part of the extension.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

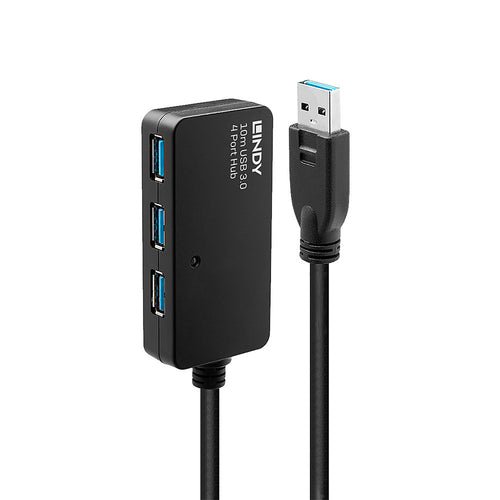

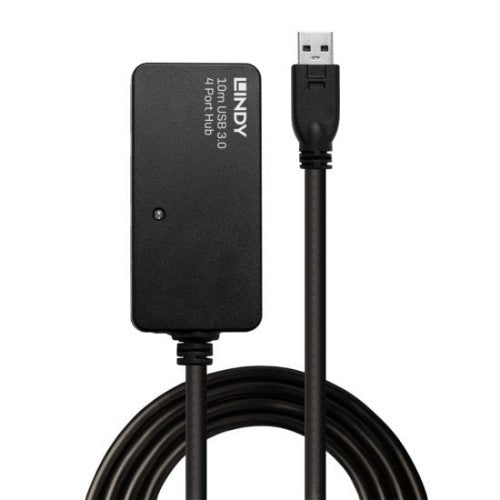

Lindy 10m USB 3.0 Active Extension Pro Hub
MPN:
43159
Out of stock
Β£82.55 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- High performance hub with active cable that provides an extended 10m connection between a computer and up to 4 USB 3.0 devices
- Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cable configurations used)
- Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
- Easy to use Β connects to the deviceandrsquo;s existing USB cable (2m maximum)
- 2 year warranty
Description
The Lindy USB Active Extension Hub Pro is a high-performance hub with active cable that allows access to four USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension hub is perfect for transferring large data volumes quickly and reliably.This hub features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
This 10m extension hub can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and this Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).
Using this hub as part of the USB 3.0 Active Extension System Pro
If you would like to use this hub as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.
This Active Extension Hub Pro must be installed as the final part of the extension system.
The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.
The final part of the extension can be any cable or hub from the Extension System Pro range.
If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit with its power supply as the final part of the extension.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| DC-in jack | Yes |
| Ports quantity | 4 |
| Cable shielding | Aluminum mylar foil |
| Cable length | 10 m |
| Features | |
| Plug and Play | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Cable type | Round cable |
| Cable length | 10 m |
| Data transfer rate | 5000 Mbit/s |
| Housing material | Plastic |
| Cable jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 24/24/20 |
| Plating material | Nickel |
| Cable diameter | 7 mm |
| Conductor material | Tinned copper |
| Contact material | Brass |
| Connector contacts plating | Gold |
| Bend radius (min) | 3.6 cm |
| Transmission medium | Twisted pair |
| Nominal attenuation | 0.064MHz - 0.08dB 0.256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Data transmission | |
| Data transfer rate | 5000 Mbit/s |
| Power | |
| Power note | 3.5/1.35mm DC |
| Technical details | |
| Plug and Play | Yes |
| Product colour | Black |
| Operating temperature (T-T) | -20 - 60 Β°F |
| Performance | |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Plug and Play | Yes |
| Data transfer rate | 5000 Mbit/s |
| Harmonized System (HS) code | 84719000 |
| Weight & dimensions | |
| Weight | 790 g |
| Width | 80 mm |
| Depth | 38 mm |
| Height | 15 mm |
| Connector 1 dimensions (WxDxH) | 15 x 42 x 8 mm |
| Package width | 240 mm |
| Package depth | 200 mm |
| Package height | 70 mm |
| Package weight | 900 g |
| Packaging data | |
| Package type | Box |
| Package width | 240 mm |
| Package depth | 200 mm |
| Package height | 70 mm |
| Package weight | 900 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual | Yes |
| Package type | Box |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Cable length | 10 m |
| Cable shielding | Aluminum mylar foil |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 Β°F |
| Operating temperature (T-T) | 0 - 50 Β°C |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84719000 |
| Other features | |
| Cable type | Round cable |
